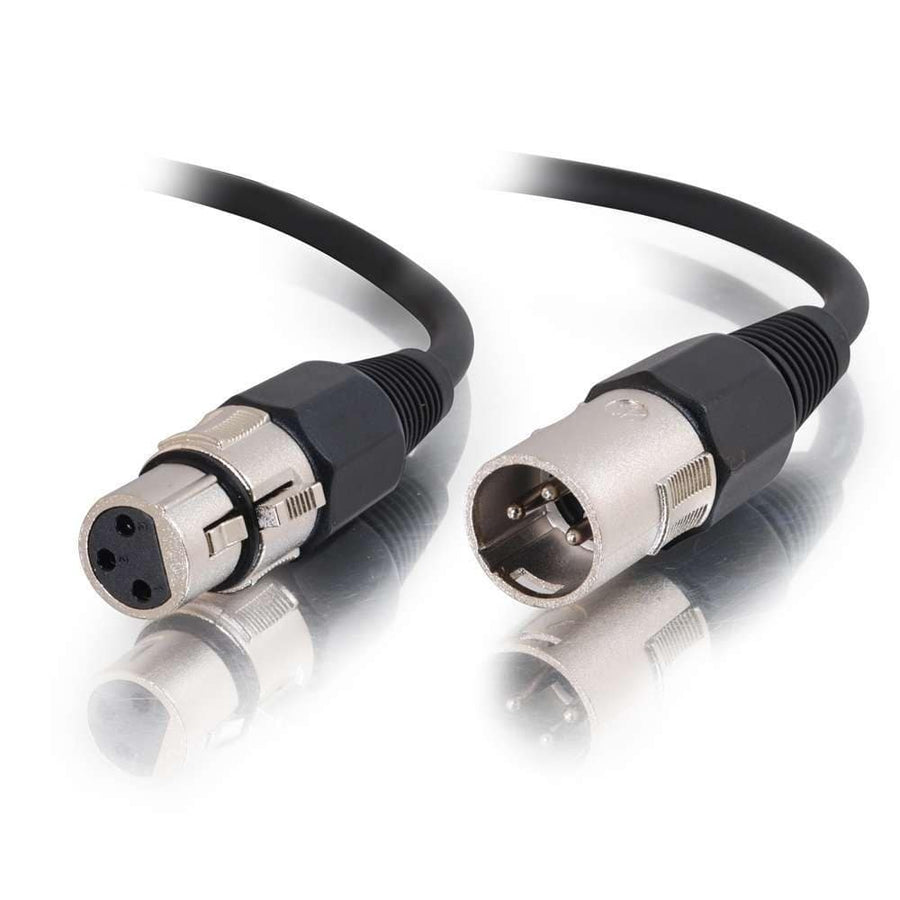

6ft (1.8m) Pro-Audio XLR Male to XLR Female Cable
6ft pro-audio XLR male to XLR female cable with 22 AWG conductors and dual foil and braid shielding
The C2G CG40059 is a 6ft (1.8 m) pro-audio cable designed to connect unbalanced sources to balanced XLR inputs. This cable utilizes 22 AWG twisted pair construction to maintain signal integrity. For maximum shielding against noise and interference, it features a combination of aluminum foil shielding and a 60% copper braid. The 0.24 in (6 mm) diameter PVC jacket is highly flexible, which helps reduce kinking and prevents damage to the internal conductors during setup or reconfiguration. The connectors are made of solid brass with bright nickel plating to resist wear during frequent movement between venues. For durability, the assembly includes a chuck strain relief inside the XLR and a spring strain relief on the plug to protect solder joints and contacts from the effects of age and mechanical stress. This cable is rated for operation in temperatures ranging from -4°F to 176°F (-20°C to 80°C).
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.31 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 12
| Wire Gauge | 22 |
| Cable Type | AudioXLR |
| Color | Black |
| Connector 1 | (1) XLR 3-pin Male(1) XLR 3-pin Male |
| Connector 2 | (1) XLR 3-pin Female(1) XLR 3-pin Female |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120400592 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the shielding construction of the CG40059 cable?
The CG40059 uses a combination of an aluminum foil shield and a 60% copper braid to protect the 22 AWG twisted pair conductors from interference.
What are the operating temperature limits for this XLR cable?
This cable is rated for operation in temperatures between -4°F to 176°F (-20°C to 80°C).
How does this cable protect against connector wear?
The solid brass connectors feature bright nickel plating to resist wear during frequent reconfiguration, and they include internal chuck strain relief to protect solder joints.
Is the CG40059 available in different lengths?
Yes, the series includes various options such as 3 ft, 12 ft, 25 ft, and 50 ft versions.
What certifications does this product carry?
This cable is listed with NDAA 889, REACH, RoHS, TSCA, and Prop 65 certifications.
