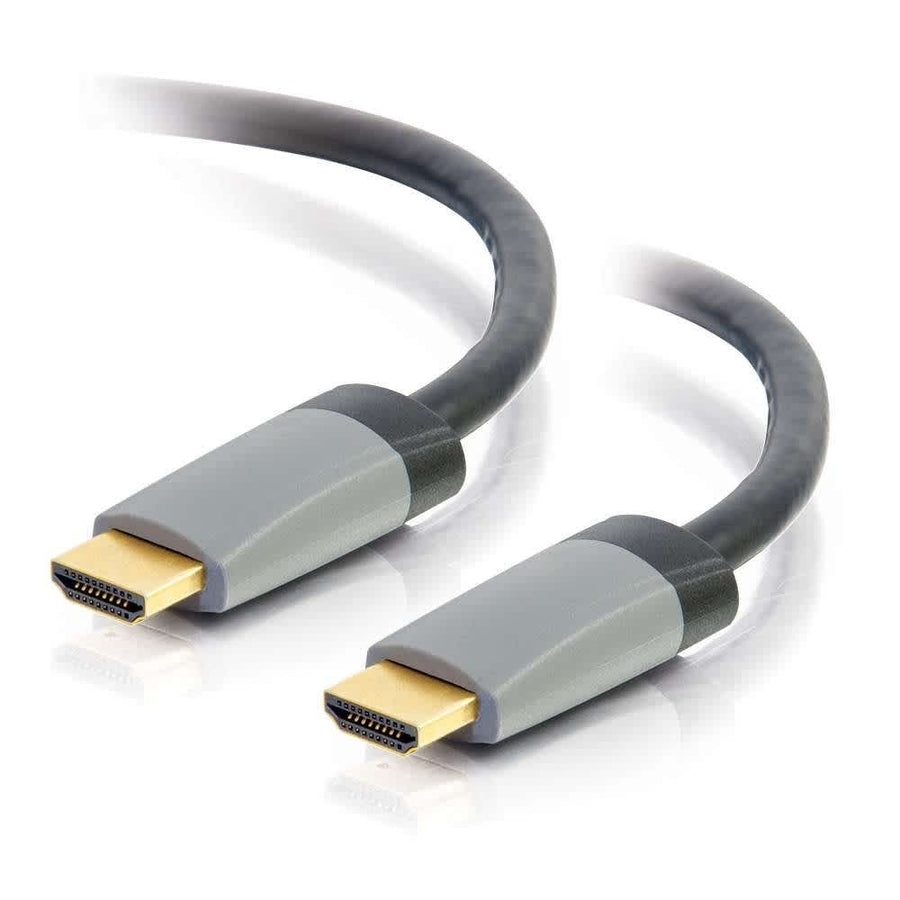

6ft (1.8m) Plus Series Select High Speed HDMI® Cable with Ethernet
6ft High Speed HDMI cable with Ethernet, CL2 rated for in-wall use and 4K @ 60Hz support
The CG50627 is a 6ft (1.8 m) High Speed HDMI cable designed for connecting multimedia source devices in desktop or commercial audio-video environments. This Plus Series cable is CL2 rated, making it suitable for in-wall installations where jacket compliance is required. It supports video resolutions up to 4K @ 60Hz and features a data transfer rate of 18 GBPS. The cable is equipped with gold plated HDMI male connectors to ensure enhanced durability and increased electrical conductivity. For advanced AV control, this cable supports CEC extensions, allowing for the management of consumer electronics through a single control point. It also supports up to 32 audio channels to facilitate an immersive audio experience. With a cable diameter of 0.29 in (7.3 mm) and a bend radius of 2.01 in (51 mm), it provides reliable connectivity for professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 2.01 in (51 mm) |
| Cable Diameter | 0.29 in (7.3 mm) |
| Cable Length | 6 ft (1.8 m) |
| Package Count | 1 |
| Shipping Weight | 0.33 lbs (0.2 kg) |
| Cable Type | High Speed HDMIVideo |
| Color | Black |
| Connector 1 | (1) HDMI Male |
All other specifications 10
| Connector 2 | (1) HDMI Male |
| HDMI Type | High Speed |
| Jacket Application | In-Wall Rated |
| Jacket Rating | CL2 Rated |
| Signal Type | HDMI |
| TAA Compliant | No |
| Video Resolution | 4K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 18 GBPS |
| Warranty | Lifetime |
Resources
Questions about this part
Can I use the CG50627 for in-wall installations?
Yes, the CG50627 features a CL2 rated jacket specifically designed to meet the requirements for in-wall applications.
What video resolution does the CG50627 support?
This High Speed HDMI cable supports video resolutions up to 4K @ 60Hz with a data transfer rate of 18 GBPS.
Does this HDMI cable support audio control features?
Yes, the cable supports CEC extensions for controlling multiple devices from a single point and supports up to 32 audio channels.
What are the physical dimensions of the CG50627 cable?
The cable has a length of 6 ft (1.8 m), a cable diameter of 0.29 in (7.3 mm), and a bend radius of 2.01 in (51 mm).
What certifications does this C2G cable have?
The CG50627 is listed with NDAA 889, Prop 65, REACH, RoHS, and TSCA certifications.
