6ft (1.8m) Mini DisplayPort™ to DisplayPort™ Adapter Cable 4K 30Hz - Black
6ft Mini DisplayPort to DisplayPort adapter cable supporting 4K resolution at 30Hz for laptops and tablets

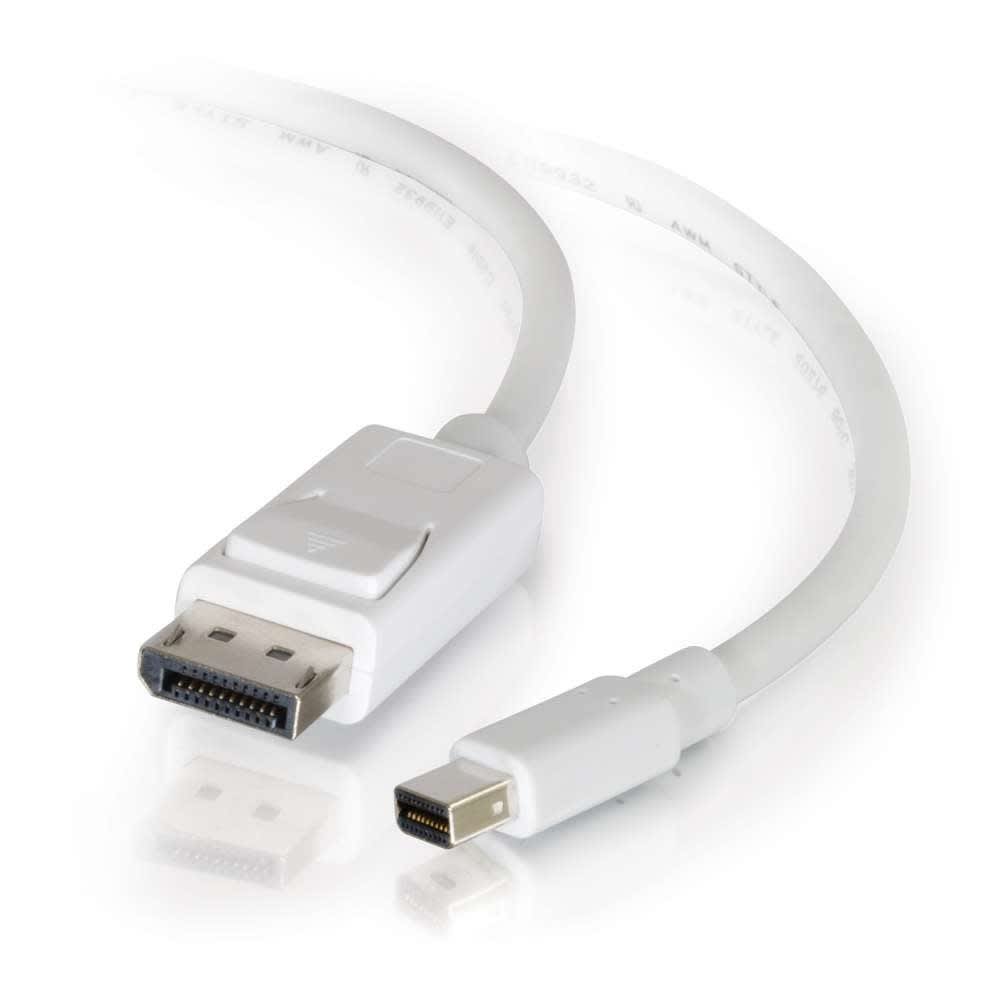

The C2G CG54301 is a 6 ft (1.8 m) adapter cable designed to bridge the connection between a small laptop or tablet and a computer monitor. It features a Mini DisplayPort male connector on one end and a DisplayPort male connector on the other, allowing devices with Mini DisplayPort outputs to interface with monitors that require a standard DisplayPort input. Built to DisplayPort 1.2 standards, this cable supports digital audio/video signals at resolutions up to 4K (4096 x 2160 at 30Hz). This is a reliable accessory for Microsoft® Surface® products and other high-performance laptop applications. The cable features a 5.2 mm diameter and is rated for a voltage of 30v, ensuring consistent signal integrity for professional setups.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cable Length | 6 ft (1.8 m) |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Cable Type | DisplayPort |
| Color | Black |
| Connector 1 | (1) Mini DisplayPort Male(1) Mini DisplayPort Male |
| Connector 2 | (1) DisplayPort Male(1) DisplayPort Male |
| TAA Compliant | No |
| UPC | 757120543015 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
| Cable Diameter | 5.2 mm |
Resources
You'll need these with it
Questions about this part
Will this CG54301 cable work with my Microsoft Surface?
Yes, this adapter cable is designed as a perfect accessory for Microsoft® Surface® products and other laptops that utilize a Mini DisplayPort output.
What is the maximum resolution supported by this cable?
This cable supports digital audio/video signals up to a 4K resolution of 4096 x 2160 at 30Hz.
Is there a longer version of this Mini DisplayPort cable available?
Yes, for longer runs, the CG54302 is a 10ft (3m) version of this Mini DisplayPort to DisplayPort 4K 30Hz adapter cable.
What are the connector types for the CG54301?
This 6 ft cable features one Mini DisplayPort male connector and one DisplayPort male connector.
What is the minimum bend radius for this cable?
The minimum bend radius for this 5.2 mm diameter cable is 52mm.
