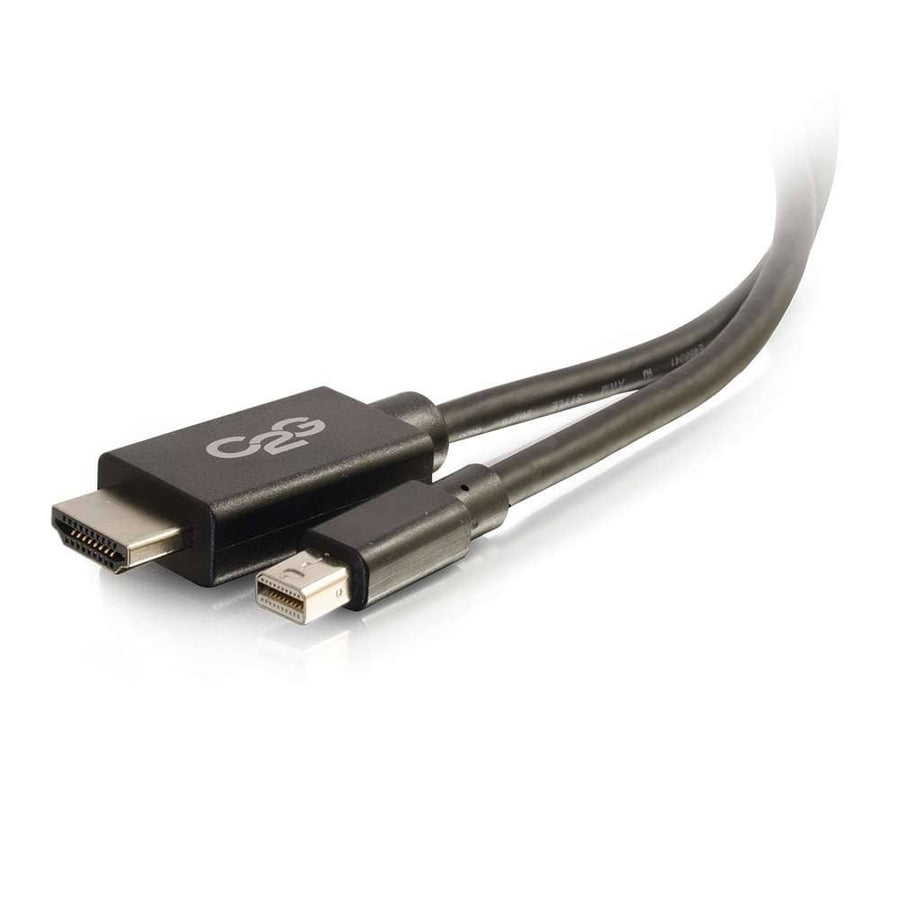

6ft (1.8m) Mini DisplayPort™ Male to HDMI™ Male Adapter Cable - Black
6ft Mini DisplayPort Male to HDMI Male adapter cable, supports 1080p resolution at 60Hz, perfect for Microsoft Surface products
The C2G CG54421 is a 6ft (1.8m) Mini DisplayPort Male to HDMI Male adapter cable designed to bridge the gap between modern computing devices and presentation displays. This active device allows you to connect a laptop, tablet, or other source device equipped with a Mini DisplayPort or Thunderbolt 2 output directly to a projector, monitor, or HDTV that features an HDMI input. It is a specialized solution for Microsoft Surface Pro 6, Surface Laptop 2, and other leading laptops in huddle spaces or conference rooms. This shielded cable carries both digital audio and video signals in a single connection, supporting resolutions up to 1080p at 60Hz. The 0.26 in (6.5 mm) diameter cable features a PVC jacket and is rated for operating temperatures between 32° to 122°F (0° to 50°C). This 6ft cable is part of a series that includes a 3ft (0.9m) version (CG54420) and a 10ft (3m) version (CG54327).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.26 in (6.5 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 30 |
All other specifications 15
| Cable Shielding | Shielded |
| Cable Type | DisplayPortHDMI |
| Color | Black |
| Connector 1 | (1) Mini DisplayPort Male(1) Mini DisplayPort Male |
| Connector 2 | (1) HDMI Male(1) HDMI Male |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Active DeviceAdapterCable |
| TAA Compliant | No |
| UPC | 757120544210 |
| Video Input Support | Mini DisplayPort |
| Video Output Support | HDMI |
| Video Resolution | 1080p |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | 5 years |
Resources
You'll need these with it
6ft (1.8m) DisplayPort™ Male to HDMI™ Male Adapter Cable - Black
CG54326$41.99
10ft (3m) DisplayPort™ Male to HDMI™ Male Adapter Cable - Black
CG54327$54.99
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
3ft (0.9m) Mini DisplayPort™ Male to HDMI™ Male Adapter Cable - Black
CG54420$40.99
Questions about this part
Will the CG54421 work with my Microsoft Surface?
Yes, this cable is compatible with Microsoft Surface Pro 6, Surface Laptop 2, and other devices that utilize a Mini DisplayPort or Thunderbolt 2 output.
What resolution can this adapter cable support?
The CG54421 supports video resolutions up to 1080p at 60Hz, carrying both digital audio and video signals.
Is there a different length available for this cable?
Yes, this 6ft (1.8m) cable is part of a series that includes a 3ft (0.9m) option (CG54420) and a 10ft (3m) option (CG54327).
Does this cable require any additional adapters to connect to a standard HDMI display?
No, this is a direct adapter cable with a Mini DisplayPort Male connector for your source and an HDMI Male connector for your display.
What is the warranty period for the CG54421?
This C2G adapter cable comes with a 5-year warranty.
