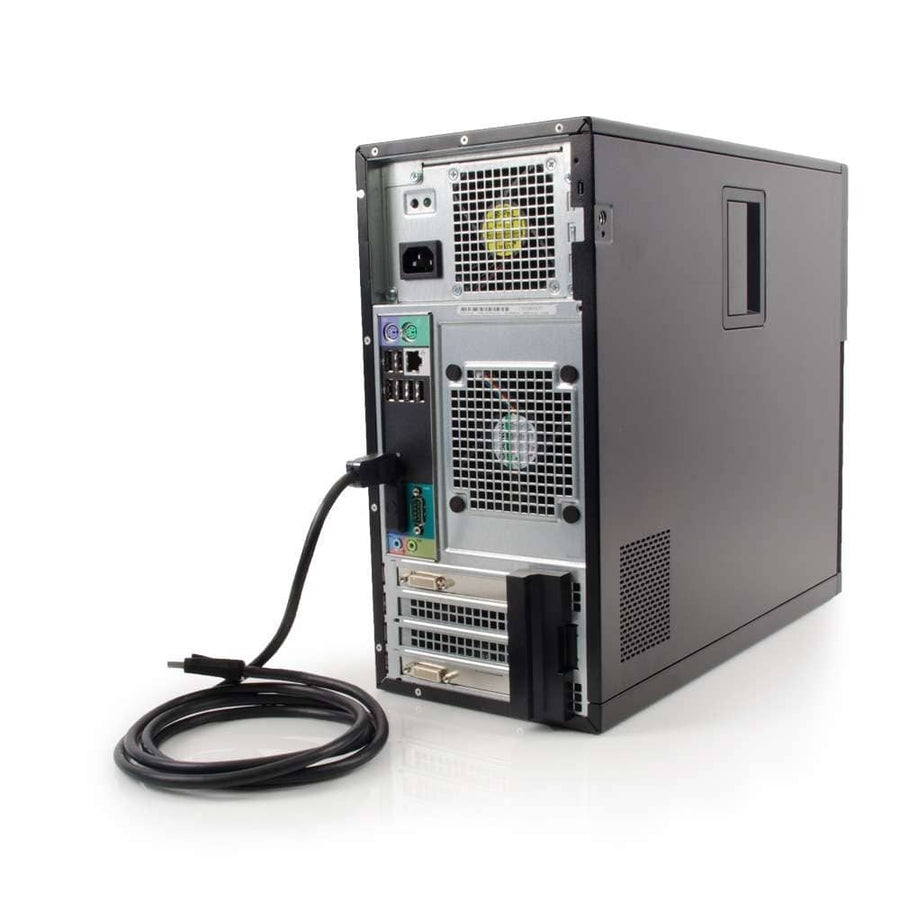

6ft (1.8m) DisplayPort™ Cable- 4K 60Hz
6ft DisplayPort cable supporting 4K @ 60Hz, 10.8 Gbps bandwidth, and shielded construction
The CG24904 is a 6ft (1.8 m) DisplayPort cable engineered for high-definition A/V connectivity between sources and displays. Designed to meet DP 1.2 specifications, this cable supports High Bit Rate (HBR) to provide a bandwidth of 10.8 Gbps. This data rate enables the transmission of resolutions up to 4K (4096 x 2160) at a 60Hz refresh rate, utilizing 12 bpc (bits per component) and 36 bpp (bits per pixel) for clear digital audio and video signals. The cable features a PVC jacket and is fully shielded with aluminum wrapping and a copper braid shield to protect against EMI/RFI interference. It is built with 28 AWG wire and utilizes DisplayPort male connectors on both ends. This cable is compliant with NDAA 889 and is RoHS and REACH certified, ensuring it meets relevant environmental and security standards for professional installations.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 6 ft (1.8 m) |
| Shipping Weight | 0.35 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Shielded |
| Cable Type | DisplayPort |
| Color | Black |
| Connector 1 | (1) DisplayPort Male(1) DisplayPort Male |
| Connector 2 | (1) DisplayPort Male(1) DisplayPort Male |
All other specifications 12
| Federal Ops Country of Origin | Indonesia |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120249047 |
| Video Input Support | DisplayPort |
| Video Output Support | DisplayPort |
| Video Resolution | 1080p4K4K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10.8 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Will the CG24904 support 4K resolution?
Yes, this cable supports resolutions up to 4K @ 60Hz (4096 x 2160) using High Bit Rate (HBR) technology.
What is the maximum data transfer rate for this DisplayPort cable?
The CG24904 provides a data transfer rate of 10.8 Gbps.
Is this cable shielded against interference?
Yes, the cable is fully shielded with aluminum wrapping and a copper braid to protect against EMI/RFI.
Does the CG24904 meet NDAA requirements?
This product is compliant with NDAA 889 standards.
What is the connector type on this cable?
The cable features DisplayPort male connectors on both ends.
