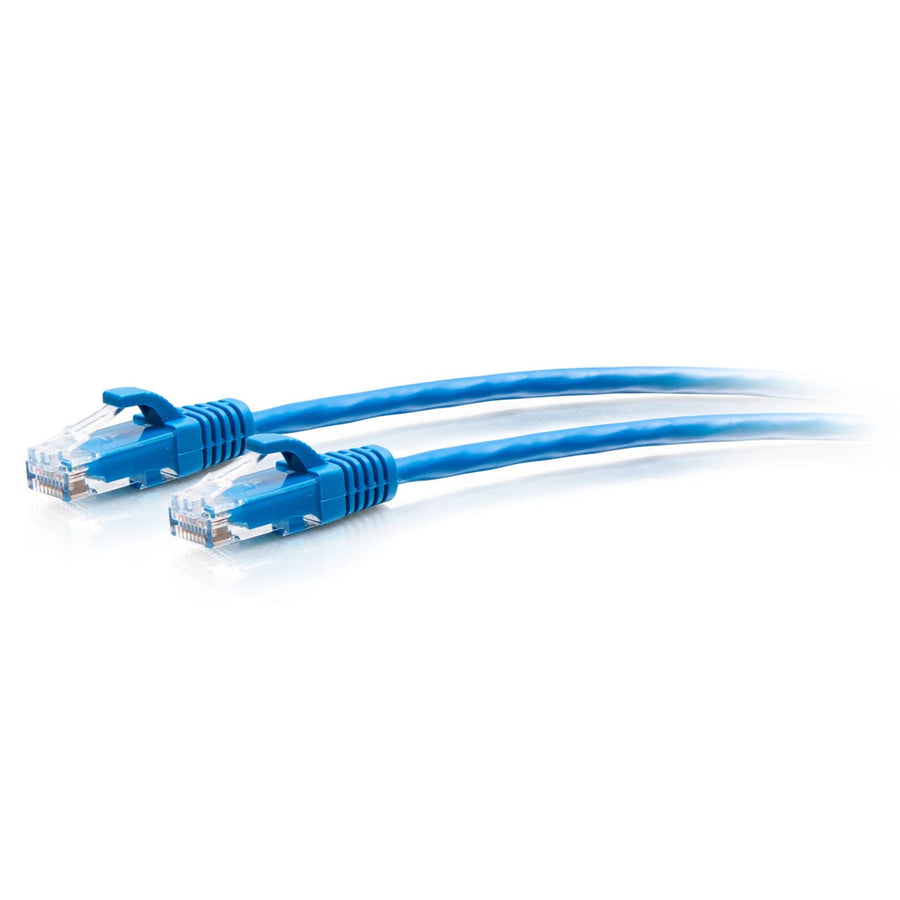

6ft (1.8m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Blue
6ft Cat6a slim Ethernet patch cable with 28AWG conductors and a snagless blue boot for high-density environments
The C2G30130 is a 6 ft (1.8 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in blue. Engineered for high-density cabling environments like datacenters and large conference rooms, this cable utilizes 28AWG stranded copper conductors. This slim construction results in a 0.19 in (4.8 mm) cable diameter, which facilitates improved airflow and greater flexibility in tight spaces compared to standard Cat6 cables. The snagless, slim, and booted RJ-45 male connectors feature gold-plated contacts and PVC hoods to provide strain relief and prevent accidental snags during installation. This Cat6a cable supports data transfer rates of up to 10 GBPS and is suitable for PoE and VoIP applications. The cable is designed to meet ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements, with an insulation resistance of 300V DC. This product is backed by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shield Type | UTP |
| Shipping Weight | 0.25 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301301 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Will this Cat6a cable work for PoE or VoIP applications?
Yes, the Cat6a technology and 28AWG construction make it suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) environments.
What is the diameter of the C2G30130 cable?
The cable has a diameter of 0.19 in (4.8 mm) ± 0.15 mm (about 0.01 in).
How do I know if this cable is the slim version?
The C2G30130 features a slim 28AWG construction and a reduced 0.19 in (4.8 mm) diameter specifically for high-density installations.
What documentation is available for submittals?
Technical details can be found in the Cat6a Slim Patch Cable Series Datasheet or the C2G Ethernet Patch Cable Matrix PDF.
Does this cable include any specific certifications?
This cable is compliant with REACH, RoHS, and TSCA, and carries the CE mark.
