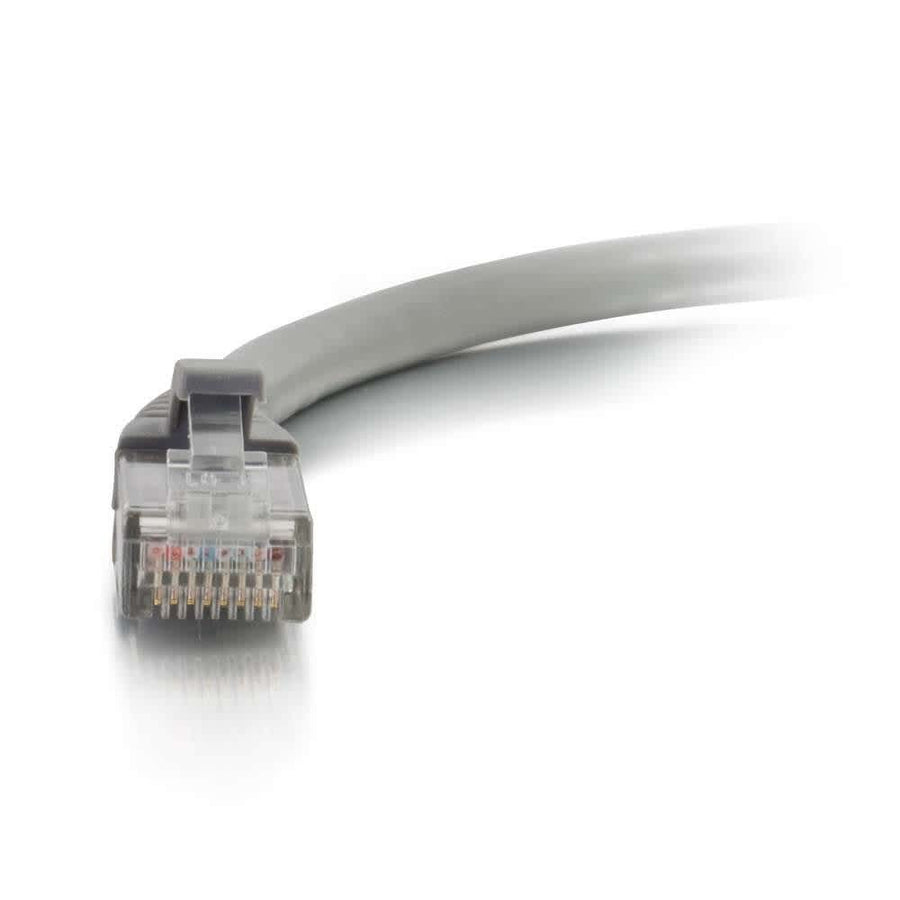

6ft (1.8m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
6ft Cat6a snagless UTP patch cable, 26AWG stranded copper, gray finish, tested to ANSI/TIA 568 C.2 channel requirements
The CG00660 is a 6ft (1.8m) Cat6a snagless unshielded UTP Ethernet network patch cable designed for high-performance 10GBase-T environments. This cable supports 10 Gigabit data transmission over 4-pair copper cabling, maintaining connection integrity up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing the necessary performance for modern network infrastructures. The construction features 26AWG bare copper stranded conductors with HDPE insulation and a PVC jacket. To optimize reliability in high-density switch applications, the cable includes snagless, booted RJ-45 male connectors with PVC hoods to prevent accidental disconnection and manage cable strain. Each cable is color-coded in gray for easy identification and includes an individual length label for rapid installation and organization. This unshielded UTP solution is built to improve alien crosstalk performance in demanding network environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006602 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What equipment is compatible with the CG00660 Cat6a cable?
This cable is designed for use with 10GBase-T ports, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels.
Does this cable support 10 Gigabit Ethernet speeds?
Yes, this Cat6a patch cable enables 10 Gigabit data transmission over 4-pair copper cable for connections up to 100 meters.
Is this patch cable suitable for high-density switch installations?
Yes, the snagless hood design is specifically intended for use in high-density switch applications to protect the connection.
What is the wiring standard for this C2G patch cable?
The CG00660 utilizes the 568B wiring scheme for all connections.
How can I identify different cable lengths in a large installation?
Each cable features an individual length label to assist with identification and organization during installation.
