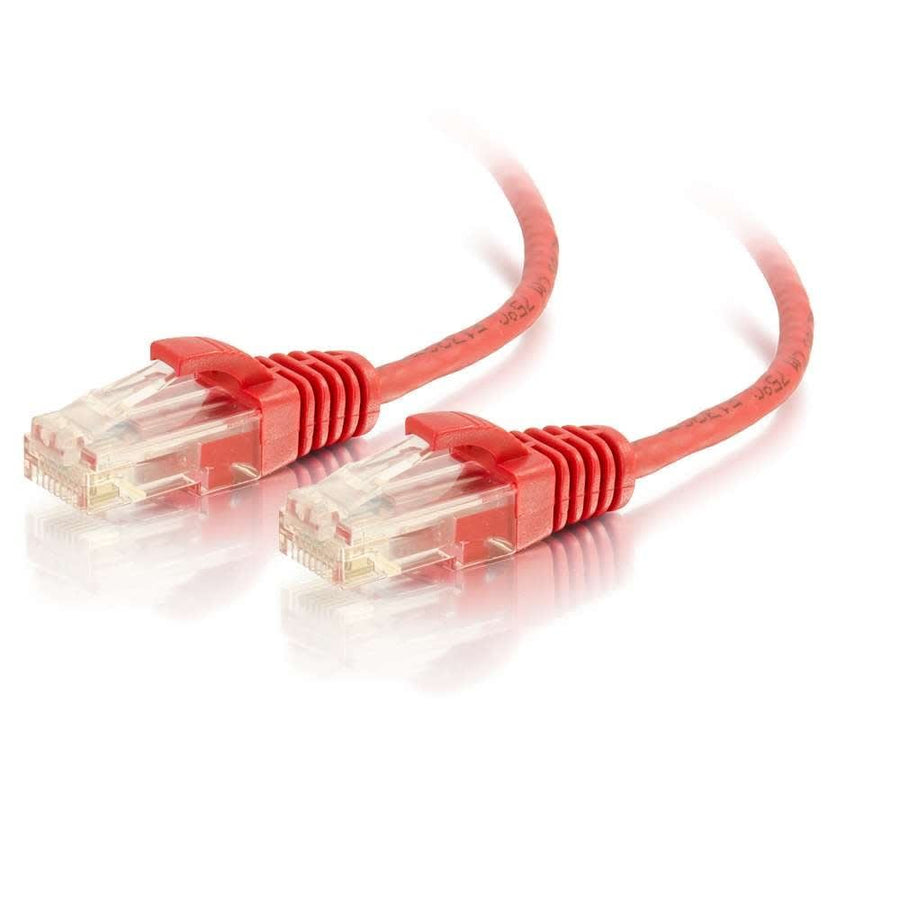

6ft (1.8m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Red
6ft Red Cat6 Slim Unshielded UTP Patch Cable with 28 AWG conductors for high-density airflow and improved bend radius
The C2G02232 is a 6ft (1.8m) Cat6 Slim Unshielded UTP Network Patch Cable in red, engineered specifically for high-density datacenter environments. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This slim 0.15 in (3.8 mm) profile reduces the cable surface area, which facilitates significantly improved airflow within crowded racks. The smaller bend radius of 0.6 in (15.2 mm) allows for easier routing through narrow cable management panels. This cable is designed for high-performance, bandwidth-intensive voice, data, or video distribution applications requiring a 10 GBPS data transfer rate and 500 mHz bandwidth. Each connector features a snagless PVC boot for strain relief and 50 µ in gold plating. For PoE/PoE+ applications, installers should limit cable bundles to 40 units to manage heat dissipation resulting from the reduced diameter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.09 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022329 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 QuickConnect RJ45 Keystone Insert in Orange
WP3476OR$6.49
RJ45 Snap & Go Cat6 Keystone Insert in White
WP3560WH$12.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6 QuickConnect RJ45 Keystone Insert in White - 50 Pack
WP3476WH50$269.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Questions about this part
Will this C2G02232 cable work for PoE or PoE+ applications?
Yes, but for PoE/PoE+ applications, it is recommended to limit cable bundles to a maximum of 40 cables to account for heat dissipation in these 28 AWG reduced diameter cables.
What is the maximum channel length for this slim Cat6 cable?
For a 96 Meter Channel, you can use up to 6 meters of these slim network patch cables. For a 93 Meter Channel, you can use up to 10 meters of these slim cables.
Does this cable meet TIA/EIA standards for networking?
Yes, this C2G02232 cable complies with the ANSI/TIA-568-C.2 standard and is TIA/EIA-568-C.2 compliant.
What is the bend radius of the C2G02232 cable?
This cable features a minimum bend radius of 0.6 in (15.2 mm), making it suitable for tight spaces and dense management panels.
What do I need for a submittal regarding performance data?
You can refer to the Cat6 Slim Expansion Test Data PDF for detailed technical expansion information.
