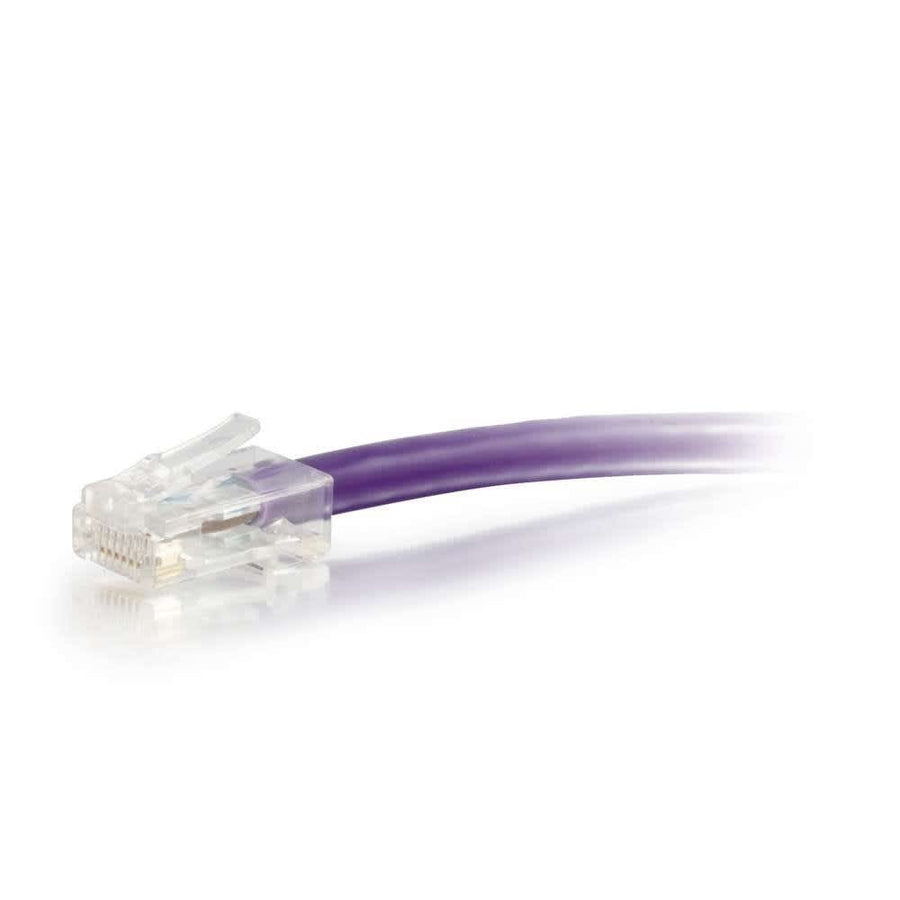

6ft (1.8m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Purple
6ft Cat6 UTP patch cable in purple, featuring stranded copper conductors and T568B wiring for high-bandwidth networking
The C2G CG04216 is a 6ft (1.8m) Cat6 non-booted patch cable designed for bandwidth-intensive voice, data, and video distribution in fast Ethernet and Gigabit computer networks. This unshielded UTP cable utilizes stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels and maintain signal integrity. Each individual pair is bonded together to preserve twist-spacing throughout the entire line, which helps reduce impedance and structural return loss (SRL). This specific cable features a purple PVC jacket with a 0.24 in (6 mm) diameter and utilizes the T568B wiring scheme. It is built to meet all Cat6 TIA/EIA standards, ensuring reliable performance for professional networking environments. The non-booted design and 24 AWG wire gauge make it a versatile choice for color-coded cable management in high-density racks or workstations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shield Type | UTP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 13
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120042167 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
Questions about this part
What is the wiring standard for the C2G CG04216?
This Cat6 patch cable follows the T568B wiring scheme for standard network connectivity.
Is the C2G CG04216 a shielded or unshielded cable?
The CG04216 is an unshielded UTP (Unshielded Twisted Pair) cable, which helps reduce impedance and structural return loss.
What is the maximum temperature rating for this cable?
This cable has a temperature rating of 75°C.
What are the connector types on this 6ft cable?
This cable features two RJ-45 male connectors in a non-booted configuration.
Can I use this cable for Gigabit networking?
Yes, it is designed for Gigabit computer networks and meets all Cat6 TIA/EIA standards.
