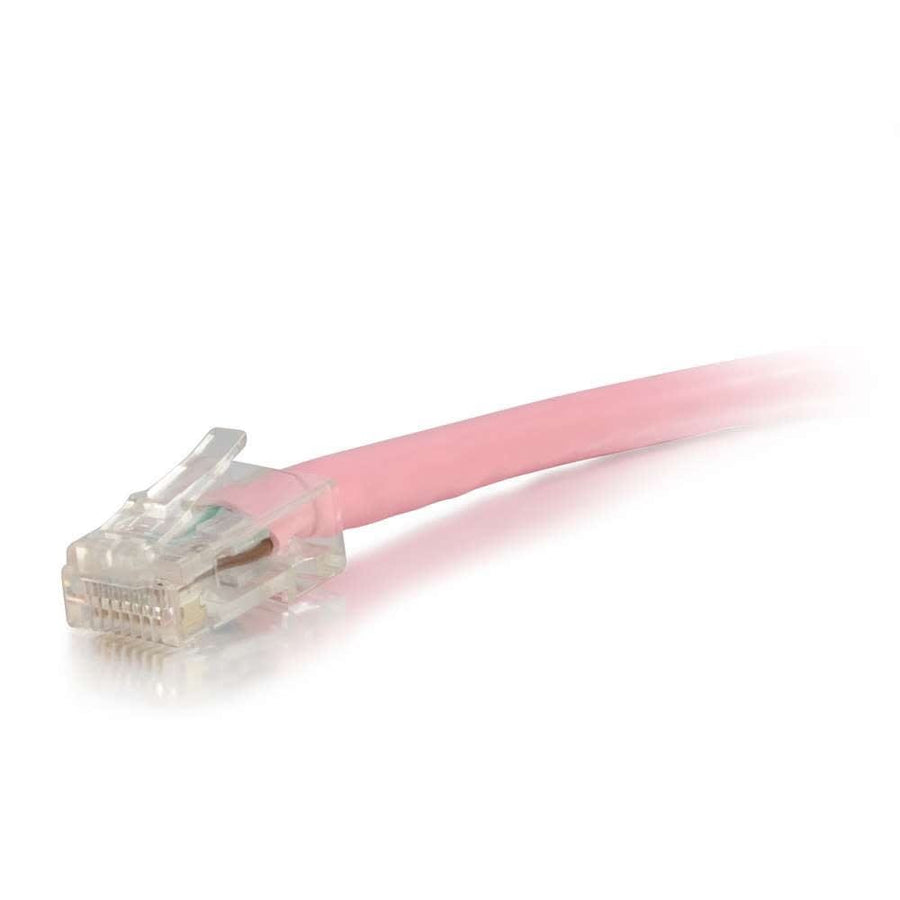

6ft (1.8m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Pink
6ft Cat6 unshielded UTP ethernet patch cable in pink with T568B wiring
The CG04258 is a 6ft (1.8m) Cat6 Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution applications. This pink cable is engineered to meet all Cat6 TIA/EIA standards, helping to drastically reduce impedance and structural return loss (SRL). It is constructed using high-quality stranded copper conductors, a design choice that minimizes Near-End Crosstalk (NEXT) levels. To maintain signal integrity, each individual pair is bonded together, which helps preserve twist-spacing from the connector to the end of the line. This cable features a non-booted connector type with RJ-45 Male ends on both sides, utilizing a T568B wiring scheme. The cable jacket is made of PVC and is rated for a maximum temperature of 75°C. This pink color variant allows installers to easily implement color-coding strategies within a larger network installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shield Type | UTP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 13
| Category Performance Application | Cat6 |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120042587 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
Questions about this part
What is the wiring standard for this CG04258 patch cable?
This Cat6 cable uses the T568B wiring scheme and features RJ-45 Male connectors.
Can I use this cable for high-bandwidth video applications?
Yes, this Cat6 cable is designed for bandwidth-intensive voice, data, and video distribution applications.
What is the conductor material and construction for the CG04258?
The cable is constructed from high-quality stranded copper conductors to help minimize Near-End Crosstalk (NEXT) levels.
What is the maximum temperature rating for the jacket?
The PVC jacket has a temperature rating of 75°C.
Is this cable suitable for color-coded network environments?
Yes, this specific SKU is pink, making it a useful option for color-coding complex network installations.
