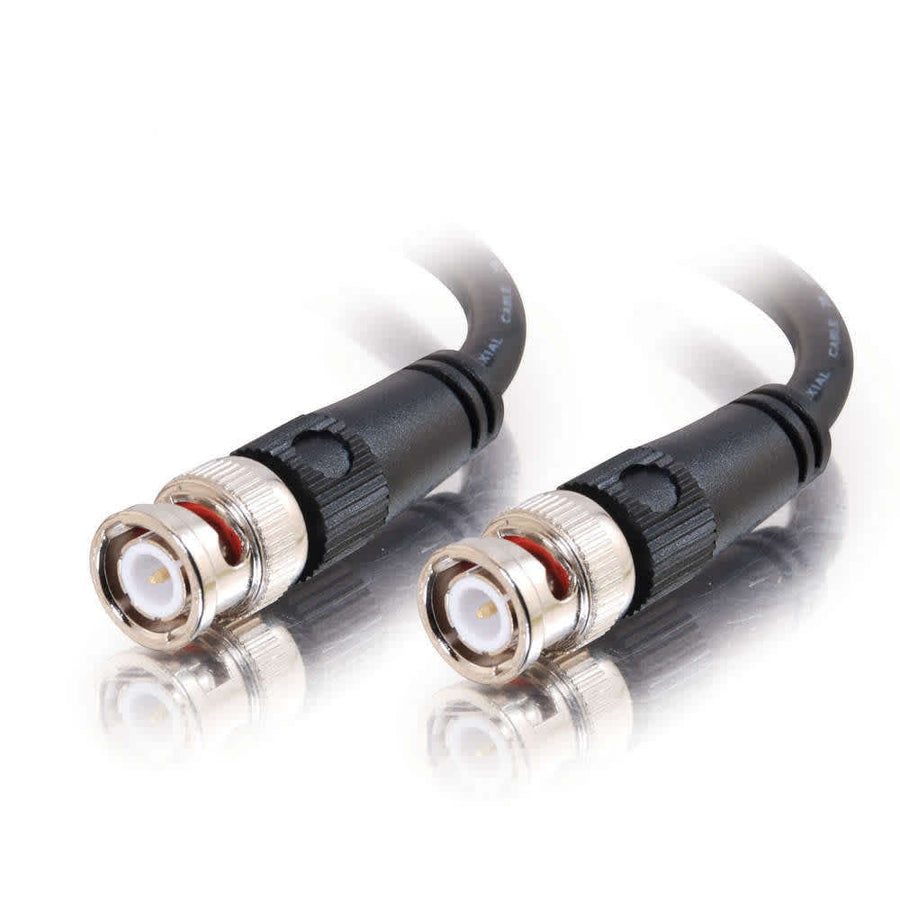

6ft (1.8m) 75 Ohm BNC Cable
6 ft (1.8 m) 75 Ohm BNC cable with RG59/U dual shield construction and nickel-plated BNC connectors
The C2G CG40026 is a 6 ft (1.8 m) BNC cable engineered for professional video applications, including broadcast, studio setups, CCTV, and boardroom presentations. This video cable is constructed using 75 Ohm RG59/U dual shield coaxial cabling, which utilizes a 60% copper braid over foil to ensure signal integrity. The cable features a 22 AWG copper-covered steel center conductor to facilitate reliable bidirectional signal transmission. For durability, both ends are finished with bright nickel-plated BNC male connectors that include molded PVC strain relief, protecting the connection points from mechanical wear during installation or service. This black, non-rated cable has a diameter of 0.24 in (6 mm) and uses a PVC jacket. It is compliant with several industry standards, including RoHS, REACH, and NDAA 889, and is backed by a lifetime warranty.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shipping Weight | 0.24 lbs (0.1 kg) |
| Signal Transmission | Bidirectional |
| Wire Gauge | 22 |
| Cable Type | Video |
| Color | Black |
| Connector 1 | (1) BNC Male |
All other specifications 8
| Connector 2 | (1) BNC Male |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120400264 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the construction of the C2G CG40026 coax cable?
This is an RG59/U dual shield cable featuring a 60% copper braid over foil and a 22 AWG copper-covered steel center conductor.
What types of video applications is this BNC cable for?
This 6 ft cable is designed for video applications such as CCTV, broadcast, studio environments, and boardroom presentations.
Does the C2G CG40026 cable support bidirectional signal transmission?
Yes, the cable is designed for bidirectional signal transmission in video applications.
What is the connector type on this 6 ft BNC cable?
The CG40026 features one BNC male connector on each end, both of which include molded PVC strain relief.
Is the CG40026 compliant with NDAA 889?
Yes, this cable is listed as NDAA 889 compliant.
