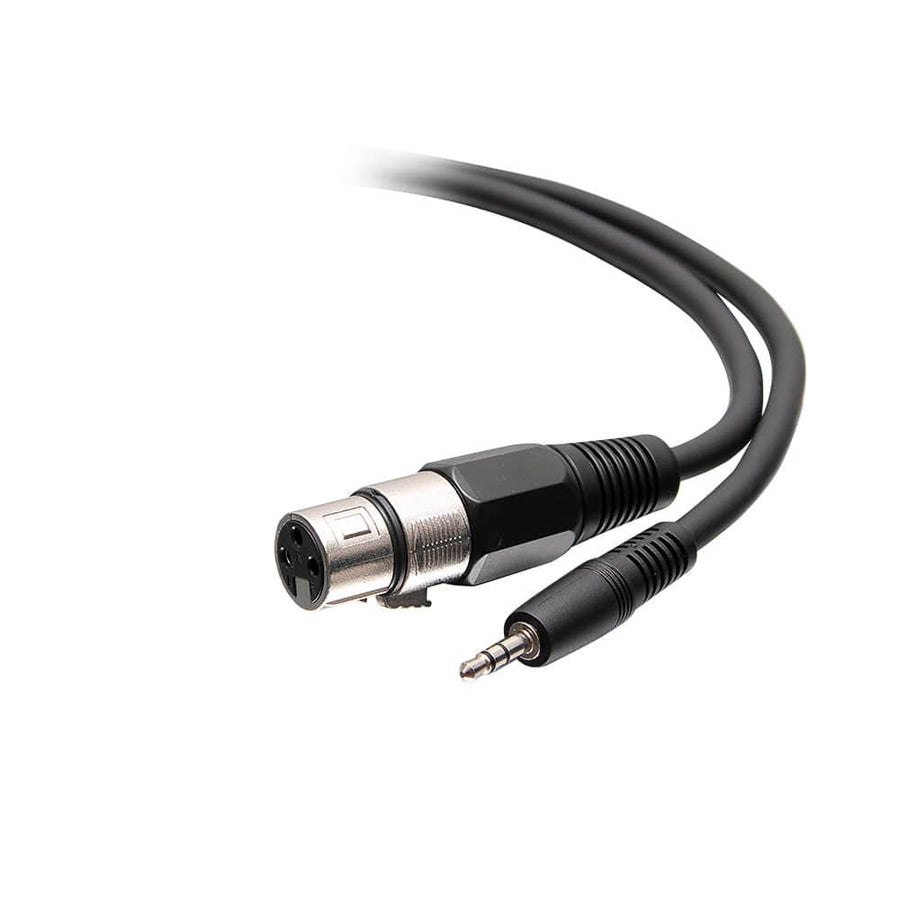

6ft (1.8m) 3.5mm Male 3 Position TRS to Female XLR Cable
6ft 3.5mm TRS to Female XLR cable for converting stereo sources to mono XLR inputs
The C2G41470 is a 6 ft (1.8 m) audio cable designed to interconnect devices featuring 3.5mm jacks with equipment requiring XLR inputs, such as mixing consoles, amplifiers, or powered speakers. This cable utilizes a 3.5mm Male 3 Position TRS (Tip/Ring/Sleeve) connector to capture stereo signals. Because this is an unbalanced cable, the left and right stereo channels are soldered together to create a single mono signal for the XLR 3-pin Female end. This conversion allows a stereo output from a source device to feed into a single mono XLR input. The construction features 22 AWG conductors with FM-PE insulation and an aluminum foil shield with cotton paper to protect signal integrity. The exterior is finished in a black, soft PVC jacket designed to reduce kinking and protect the internal conductors during installation and use.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shipping Weight | 0.26 lbs (0.1 kg) |
| Wire Gauge | 22 |
| Cable Shielding | Shielded |
| Cable Type | XLR |
| Color | Black |
| Connector 1 | (1) 3.5mm Male(1) 3.5mm Male |
All other specifications 7
| Connector 2 | (1) XLR 3-pin Female(1) XLR 3-pin Female |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120414704 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will this cable work with my stereo source and mixer?
Yes, the C2G41470 takes a stereo signal from a 3.5mm TRS jack and converts it into a single mono signal for an XLR input, making it suitable for mixing consoles and powered speakers.
Is this a balanced or unbalanced audio cable?
This is an unbalanced cable where the left and right channels are soldered together to provide a mono feed to the XLR 3-pin Female connector.
What are the physical specifications of the C2G41470?
The cable is 6 ft (1.8 m) long with a 0.24 in (6 mm) diameter and uses 22 AWG conductors.
What certifications does this cable carry?
This cable is RoHS, REACH, TSCA, and Prop 65 compliant, and it is also NDAA 889 compliant.
Does this cable come in other lengths?
Yes, this SKU is part of a series that includes 1.5 ft and 3 ft versions.
