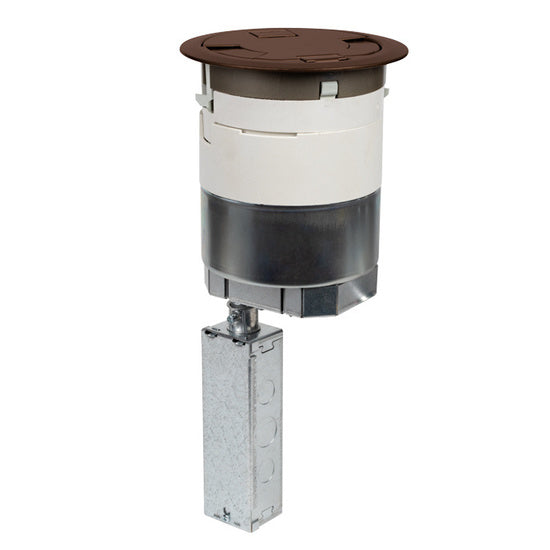

6CTC2BZ3H 3-Hour Fire Classified 6 inch Surface Style Cover Assembly in Bronze
3-hour fire rated 6-inch surface style cover assembly in Bronze for Evolution Series Poke-Thru stem assemblies
The 6CTC2BZ3H is a 3-hour fire rated, surface style cover assembly in a Bronze finish. This die-cast aluminum assembly is designed specifically for integration with 6STC3H, 6STCP3H, and 6STCPAV3H Poke-Thru Stem Assemblies. The unique cover design allows the assembly to open a full 180 degrees. To ensure safety for users, the unit features two spring-loaded slide egress doors that protect personnel, wiring, and connections. This 6-inch assembly provides a secure, fire-classified solution for recessed poke-thru applications in commercial environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11.5" x 11.5" x 2.9" (292.1 x 292.1 x 73.7 mm) |
| Color | Bronze |
| Cover Style | Surface |
| Receptacle Type | Standard |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Which stem assemblies is the 6CTC2BZ3H compatible with?
This cover assembly is designed for use with 6STC3H, 6STCP3H, and 6STCPAV3H Poke-Thru Stem Assemblies.
What are the safety features of the 6CTC2BZ3H cover?
The cover features a unique design that opens a full 180 degrees and includes two spring-loaded slide egress doors to protect connections and people.
What is the fire rating for this 6-inch cover assembly?
The 6CTC2BZ3H is a 3-hour fire classified assembly.
Is the 6CTC2BZ3H UL listed?
This product carries cULus and RoHS certifications.
Which documentation is used for submittals for this poke-thru device?
For submittals, installers can refer to the Evolution Series 6" Poke-Thru Devices brochure or the 3-Hour Fire-Classified Evolution Series 6" Poke-Thru Device PDF.
