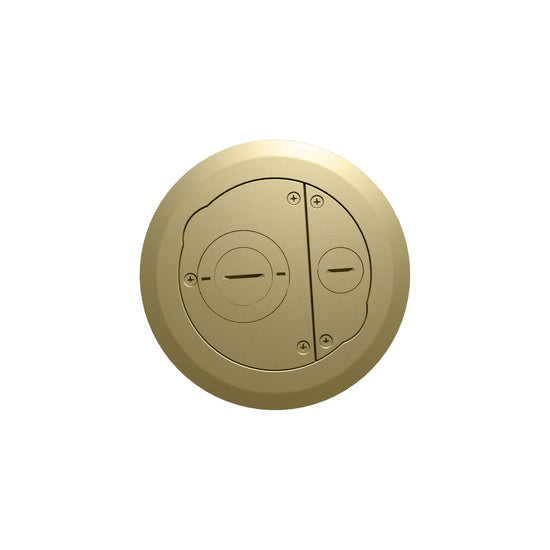

6ATCFFSB Evolution™ Recessed Furniture Feed Assembly with Surface Style Cover in Satin Brass
Recessed furniture feed assembly for 6" openings in carpet, tile, wood, or laminate, featuring a Satin Brass finish
The Wiremold 6ATCFFSB is a recessed furniture feed assembly from the Evolution Series, finished in Satin Brass. Designed for installation in 6" (152mm) diameter openings, this assembly is intended for use in carpet, tile, wood, and laminate concrete floor coverings. Once installed, the device is recessed 3 1/4" (83mm) below the floor surface. The die-cast aluminum cover includes one 3/4" trade size screw plug opening and one concentric 2"-1 1/4" trade size screw plug opening. This assembly provides dual service furniture feed capability and is UL Fire Classified for up to 2-hour rated floors to maintain the floor's fire classification. It is designed for quick installation without requiring a second installer or additional fasteners, meeting NEC Section 300-22(C) requirements. For submittal data, installers can refer to the Evolution Series 6" Poke-Thru Devices PDF.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 7.25 in (18.4 cm) |
| Shipping Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Width | 7.75 in (19.7 cm) |
| Color | Satin Brass |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What floor types is the 6ATCFFSB compatible with?
This assembly is designed for use in concrete floor coverings including carpet, tile, wood, and laminate.
Does this assembly include all necessary device plates?
No, device plates are not provided for the side or center compartments; however, it includes a 5PTHA 1/2-Gang Pass-Through Housing Assembly, a 5FFHA 1 1/2-Gang Pass-Through Housing Assembly, and a 575CHA 1/2-Gang 3/4" Conduit Housing Assembly.
Is the 6ATCFFSB UL listed?
Yes, it is UL Listed and UL Fire Classified to meet both U.S. and Canadian safety standards.
What size opening is required for installation?
The unit is designed for use in a 6" (152mm) diameter opening and sits 3 1/4" (83mm) below the floor surface.
Which document should I use for submittals?
You can refer to the Evolution Series 6" Poke-Thru Devices PDF for technical details and submittal information.
