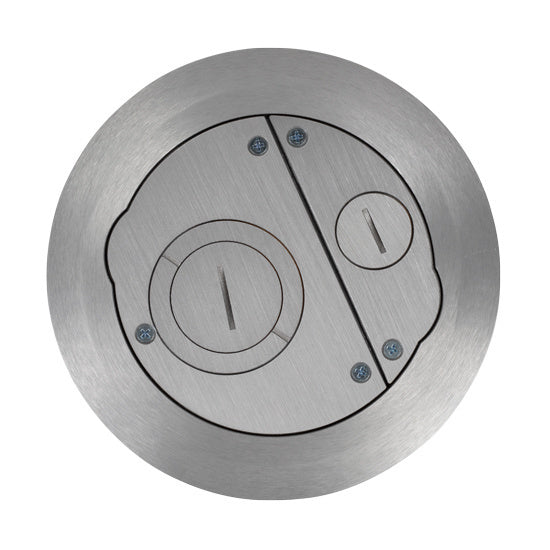

6ATCFFAA Evolution™ Recessed Furniture Feed Assembly with Surface Style Cover in Brushed Aluminum
Recessed furniture feed assembly for 6" floor openings with a brushed aluminum cover and dual service capability
The 6ATCFFAA is a recessed furniture feed assembly from the Wiremold Evolution Series, finished in brushed aluminum. Designed for use in 6" (152mm) diameter floor openings, this assembly is intended for installation in carpet, tile, wood, or laminate concrete floor coverings. It is engineered to sit recessed 3 1/4" (83mm) below the floor surface. The die-cast aluminum cover assembly provides dual service capability, featuring one 3/4" trade size screw plug opening and one concentric 2"-1 1/4" trade size screw plug opening. This unit is UL Fire Classified for use in up to 2-hour rated floors, helping maintain the required fire classification of the floor. The assembly includes a 5PTHA 1/2-Gang Pass-Through Housing Assembly, a 5FFHA 1 1/2-Gang Pass-Through Housing Assembly, and a 575CHA 1/2-Gang 3/4" Conduit Housing Assembly with an attached junction box for the bottom feed compartment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 7.25 in (18.4 cm) |
| Shipping Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Width | 7.75 in (19.7 cm) |
| Color | Brushed Aluminum |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What floor types is the 6ATCFFAA compatible with?
This assembly is designed for use with carpet, tile, wood, and laminate concrete floor coverings.
What is the required floor opening size for this assembly?
The 6ATCFFAA requires a 6" (152mm) diameter opening and sits 3 1/4" (83mm) below the floor surface.
Does this unit maintain floor fire ratings?
Yes, it is UL Fire Classified for use in up to 2-hour rated floors to maintain the floor's classification.
What housing assemblies are included in the bottom feed compartment?
The bottom compartment includes a 5PTHA 1/2-Gang Pass-Through Housing Assembly, a 5FFHA 1 1/2-Gang Pass-Through Housing Assembly, and a 575CHA 1/2-Gang 3/4" Conduit Housing Assembly.
How does this assembly differ from other Evolution Series models?
This SKU features a brushed aluminum finish; other color options in the series include black, gray, nickel, brass, and bronze.
