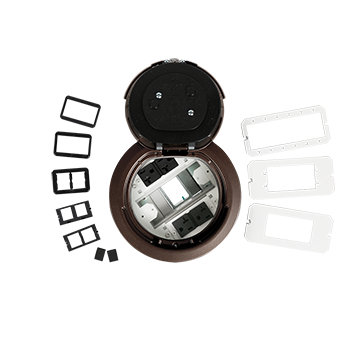

6ATC2PBZ3H 3-Hour Fire Classified 6 inch Recessed Prewired Surface Style Poke-Thru Assembly in Bronze
Prewired 6 inch recessed poke-thru assembly in Bronze with 3-hour fire classification and 3 gang capacity
The 6ATC2PBZ3H is a prewired 6 inch recessed Evolution Series poke-thru assembly finished in Bronze. Designed for both new construction and retrofit applications, this assembly provides recessed access to power, communications, and A/V services below the floor level to ensure maximum device protection. This specific model features 3 gangs of capacity, allowing installers to configure multiple services within a single floor opening. It utilizes an intumescent material to maintain the floor's fire rating for up to 3 hours. The surface style cover features a unique 180-degree opening design with two spring-loaded slide egress doors to protect connections and personnel. This assembly is compatible with carpet, tile, wood, laminate, and concrete floor coverings and meets ADA accessibility guidelines via a wide trim flange.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Color | Bronze |
| Cover Style | Surface |
| Prewired | Yes |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this poke-thru work with my existing Extron or Legrand AVIP devices?
Yes, the Evolution Series uses an open system that accepts industry standard power, communications, and A/V devices from most manufacturers, including Legrand AVIP and Extron®.
What type of flooring can the 6ATC2PBZ3H be installed in?
This assembly is suitable for use with carpet, tile, wood, laminate, and concrete floor coverings.
How does this unit maintain a fire rating?
The assembly uses an intumescent material that maintains the 3-hour fire rating of the floor for up to 3 hours in the event of a fire.
Can I use wireless RF receptacles with this assembly?
Yes, plug load control can be managed up to 30 feet away when using Pass & Seymour® Wireless RF receptacles while the cover is closed.
How do the cover doors operate?
The unique cover design opens a full 180 degrees and features two spring-loaded slide egress doors to keep connections and people safe.
