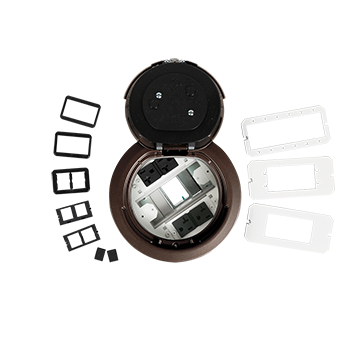

6ATC2PBZ 6AT Prewired Evolution™ Poke Thru Device with Surface Style Cover in Bronze
Prewired 6'' recessed poke-thru device with bronze surface cover, featuring 3-gang capacity and 2-hour fire rating
The 6ATC2PBZ is a prewired Evolution™ 6'' recessed poke-thru device featuring a bronze surface style cover. Designed for both new construction and retrofit applications, this unit allows for recessed access to power, communications, and A/V services, keeping connections below the floor level for maximum device protection. This 3-gang capacity assembly arrives prewired with all power receptacles already installed to reduce onsite labor. The cover utilizes a unique 180-degree opening design with two spring-loaded slide egress doors to protect connections and users. For installation in carpet, tile, wood, laminate, or concrete, the unit maintains a 2-hour fire rating through the use of intumescent material. This TAA compliant solution is built for open-space architecture in meeting rooms, classrooms, kiosks, and healthcare facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 7.25 in (18.4 cm) |
| Overall Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Width | 7.25 in (18.4 cm) |
| Color | Bronze |
| Cover Style | Surface |
| Prewired | Yes |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this 6ATC2PBZ work with my existing AV equipment?
Yes, the open system design accepts industry standard power, communications, and A/V devices from most manufacturers, including Extron® and Legrand AVIP.
What floor types can this poke-thru be installed in?
The unit is designed for use with carpet, tile, wood, laminate, and concrete floor coverings.
Does this device maintain the floor's fire rating?
The Evolution Series uses intumescent material that maintains the fire rating of the floor for up to 2 hours.
How does the cover design work?
The cover opens a full 180 degrees and features two spring-loaded slide egress doors to keep wires and connections safe.
Can I control plug loads with this device?
Yes, when the cover is closed, plug load control is possible up to 30 feet when used with Pass & Seymour® Wireless RF receptacles.
