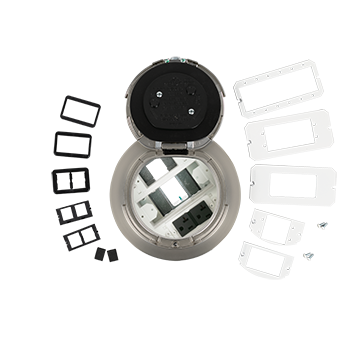

6ATC2PAVSN3H 3-Hour Fire Classified 6 inch Recessed Prewired AV Surface Style Poke-Thru Assembly in Satin Nickel
6-inch recessed poke-thru assembly with 3-hour fire rating and prewired 3-gang capacity in a satin nickel finish
The Wiremold 6ATC2PAVSN3H is a prewired 6-inch recessed poke-thru assembly designed for both new construction and retrofit applications. This unit provides a streamlined method to access power, communications, and audio/video services through the floor while keeping devices recessed below the surface for maximum protection. This 3-gang capacity assembly is configured for high-traffic environments, such as classrooms, training rooms, and healthcare facilities, and is compatible with carpet, tile, wood, laminate, and concrete floor coverings. The satin nickel cover features a surface style design with spring-loaded slide egress doors that open 180 degrees to protect connections and users. This assembly is cULus listed and maintains a 3-hour fire rating for safety and compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Color | Satin Nickel |
| Cover Style | Surface |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this poke-thru fit my existing AV or communication equipment?
Yes, the assembly includes plates designed to accept industry standard devices from most manufacturers, including Extron® and Legrand AVIP.
What kind of flooring can I install this poke-thru in?
This assembly is designed for use with concrete floor coverings as well as carpet, tile, wood, and laminate.
Is the 6ATC2PAVSN3H a complete unit or do I need to buy more parts?
This is a prewired assembly, meaning power receptacles are already installed to reduce installation time on site.
How does the cover design work for user safety?
The cover opens a full 180 degrees and utilizes two unique spring-loaded slide egress doors to keep people and connections safe.
Can I control the plug load remotely with this model?
This assembly is tested for plug load control up to 30 feet when using Pass & Seymour® Wireless RF receptacles with the cover closed.
