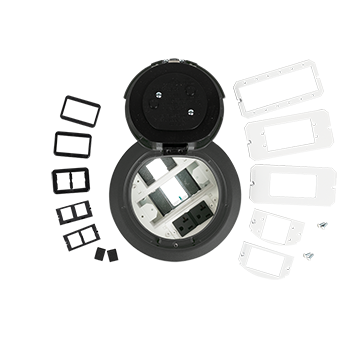

6ATC2PAVGY3H 3-Hour Fire Classified 6 inch Recessed Prewired AV Surface Style Poke-Thru Assembly in Gray
6-inch recessed prewired poke-thru assembly with 3-gang capacity and 3-hour fire rating in a gray surface-style cover
The 6ATC2PAVGY3H is a prewired Evolution Series 6 inch recessed poke-thru assembly designed for both new construction and retrofit applications. This assembly arrives with power receptacles already installed to minimize on-site labor during installation. Featuring a 3-gang capacity, this unit allows installers to configure power, communications, and audio/video services within the footprint of the assembly. The recessed design ensures all devices sit below the floor level, providing maximum protection and longevity for the hardware. This assembly is compatible with carpet, tile, wood, laminate, and concrete floor coverings. The surface-style cover is designed for high-traffic environments and features a unique 180-degree opening mechanism with two spring-loaded slide egress doors to protect internal connections and users.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Color | Gray |
| Cover Style | Surface |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this poke-thru work with my existing A/V equipment?
Yes, the assembly is A/V ready and includes plates designed to accept industry standard communications and A/V devices from manufacturers such as Extron® and Legrand AVIP.
What kind of flooring is this poke-thru assembly compatible with?
The 6ATC2PAVGY3H is designed for use with various floor coverings, including carpet, tile, wood, laminate, and concrete.
How does the installation process work for this model?
This is a prewired assembly that features a 'step-on-it' installation method, intended to be quick and easy without requiring a second installer or additional fasteners.
Is this assembly suitable for high-traffic commercial areas?
Yes, the Evolution Series is designed for high-traffic environments, featuring a 3-hour fire rating and a unique cover design with spring-loaded doors to keep connections safe.
Does this unit include the necessary A/V plates?
The assembly includes plates that accept standard industry communications and A/V devices, though specific device hardware must be sourced separately.
