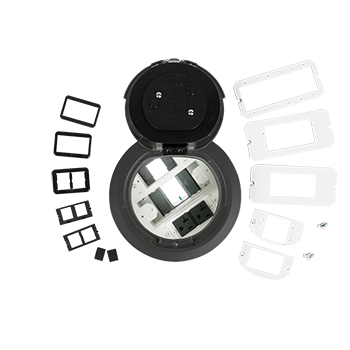

6ATC2PAVGY 6AT Prewired AV Evolution™ Poke Thru Device with Surface Style Cover in Gray
Prewired 6'' recessed poke-thru device with surface style cover in gray, designed for high-traffic commercial floors
The 6ATC2PAVGY is a prewired AV Evolution™ poke-thru device designed for both new construction and retrofit applications. This 6'' recessed unit provides convenient access to power, communications, and audio/video services located below the floor level to ensure maximum device protection. This specific model features a surface style cover in gray and includes 3 gangs of capacity for configuring necessary services. It is engineered for high-traffic environments, including classrooms, healthcare facilities, training rooms, and meeting rooms. This device is suitable for use with carpet, tile, wood, laminate, or concrete floor coverings. The assembly arrives prewired with every power receptacle already installed to reduce on-site labor. For installation, the cover features a unique design that opens 180 degrees with two spring-loaded slide egress doors to secure connections and keep pedestrians safe.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 7.25 in (18.4 cm) |
| Overall Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Width | 7.25 in (18.4 cm) |
| Color | Gray |
| Cover Style | Surface |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What kind of floor coverings can this poke-thru be installed in?
The 6ATC2PAVGY is compatible with various floor types, including carpet, tile, wood, laminate, and concrete.
Will this device work with standard A/V and communication hardware?
Yes, the included plates are designed to accept industry standard A/V and communications devices from most manufacturers, including Extron® and Legrand AVIP.
What is the benefit of the prewired assembly?
The device is delivered as a completely assembled, prewired unit with every power receptacle already installed, which saves time during installation.
Can I use this for plug load control?
This unit is tested for plug load control up to 30 feet when used with Pass & Seymour® Wireless RF receptacles while the cover is closed.
Which document is needed for submittals or fire ratings?
For fire rating information, refer to the '3-Hour Fire-Classified Evolution Series 6" Poke-Thru Device' PDF in the resources section.
