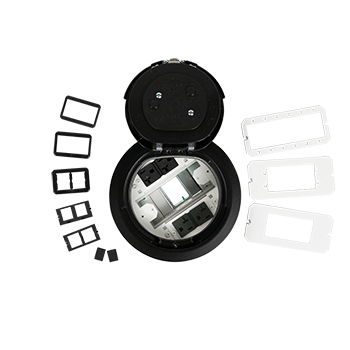

6ATC2PAVBK3H 3-Hour Fire Classified 6 inch Recessed Prewired AV Surface Style Poke-Thru Assembly in Black
6 inch recessed, prewired AV poke-thru assembly with 3-hour fire rating and black surface-style cover
The 6ATC2PAVBK3H is a prewired 6 inch recessed poke-thru assembly designed for both new construction and retrofit applications. This Evolution Series device is engineered to provide essential access to power, audio/video, and communications services by keeping all devices recessed below the floor level for maximum protection. This specific assembly arrives prewired with every power receptacle already installed, which significantly reduces on-site labor requirements. Featuring a 3-hour fire rating, these assemblies are suitable for high-traffic environments such as meeting rooms, training classrooms, healthcare facilities, and kiosks. The black surface-style cover is compatible with various floor coverings including carpet, wood, laminate, tile, and concrete. This unit is optimized for open-space architecture and supports plug load control up to 30 feet when used with Pass & Seymour wireless RF receptacles.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Color | Black |
| Cover Style | Surface |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What type of floor coverings is this poke-thru compatible with?
This 6 inch recessed assembly is designed for use with carpet, tile, wood, laminate, and concrete floor coverings.
Does this poke-thru assembly require additional wiring on site?
No, this is a prewired assembly that comes with every power receptacle already installed to save on labor.
Can I use this with standard AV and communication devices?
Yes, the assembly is A/V ready and includes plates designed to accept industry standard devices from manufacturers including Extron® and Legrand AVIP.
How is the cover designed to protect users?
The unique cover design opens a full 180 degrees and features two spring-loaded slide egress doors to keep wires and connections safe.
Is there a fire rating for this specific model?
Yes, this Evolution Series assembly features a 3-hour fire rating.
