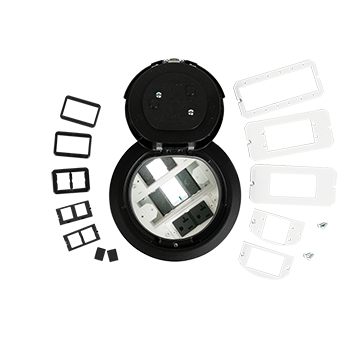

6ATC2PAVBK 6AT Prewired AV Evolution™ Poke Thru Device with Surface Style Cover in Black
Prewired 6" recessed poke-thru device with a black surface style cover and 3-gang capacity for floor-level service access
The 6ATC2PAVBK is a Wiremold Evolution Series 6" Recessed Poke-Thru device designed for both new construction and retrofit applications. This prewired assembly significantly reduces on-site labor because the power receptacles are already installed within the unit. Featuring a black surface style cover, this device is ideal for high-traffic areas such as training rooms, classrooms, meeting rooms, and kiosks. The recessed design ensures that all power, communications, and A/V services sit below the floor level for maximum protection. This unit supports 3 gangs of capacity and is compatible with carpet, tile, laminate, wood, or concrete floor coverings. The cover is designed with two spring-loaded slide egress doors that open a full 180 degrees to protect users and connections. For specialized control, this model can manage plug loads up to 30 feet away when used with Pass & Seymour wireless RF receptacles.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 7.25 in (18.4 cm) |
| Overall Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Width | 7.25 in (18.4 cm) |
| Color | Black |
| Cover Style | Surface |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will the 6ATC2PAVBK work with my existing AV equipment?
Yes, the included plates are designed to accept industry standard communications and A/V devices from most manufacturers, including Extron® and Legrand AVIP.
What type of flooring is this poke-thru compatible with?
This 6" device is suitable for installation in carpet, tile, wood, laminate, and concrete floor coverings.
How much space does the unit require in the floor?
The unit requires a depth of 16.25 in (41.3 cm) and has an overall footprint of 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm).
Does this device support wireless plug load control?
It is compatible with Pass & Seymour wireless RF receptacles to control plug loads at a distance of up to 30 feet when the cover is closed.
What is the fire rating for the Evolution Series device?
The Evolution Series 6" Poke-Thru Device features a 3-hour fire rating.
