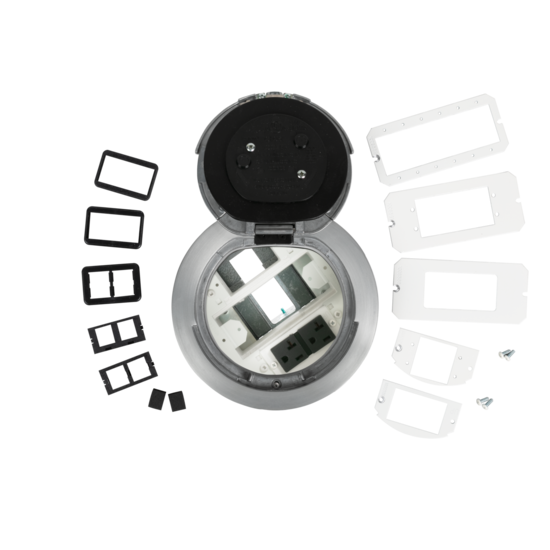

6ATC2PAVAA3H 3-Hour Fire Classified 6 inch Recessed Prewired AV Surface Style Poke-Thru Assembly in Brushed Aluminum
Recessed 6 inch prewired AV poke-thru assembly with 3-hour fire rating and brushed aluminum finish
The 6ATC2PAVAA3H is a 6 inch recessed prewired AV surface style poke-thru assembly from the Wiremold Evolution Series. This unit is designed for both new construction and retrofit applications, providing recessed access to power, audio/video, and communications services below the floor level. By housing all devices below the floor, it maximizes device protection and longevity. This specific model features a brushed aluminum finish and a unique cover design that opens 180 degrees with two spring-loaded slide egress doors. It is suitable for use with carpet, tile, wood, laminate, or concrete floor coverings. The assembly is prewired with every power receptacle already installed to reduce installation labor on-site.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Color | Brushed Aluminum |
| Cover Style | Surface |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What is the fire rating for the 6ATC2PAVAA3H?
This Evolution Series assembly features a 3-hour fire rating for specialized safety requirements.
Which floor types can this poke-thru be installed in?
This assembly is designed for use in applications with carpet, tile, wood, laminate, or concrete floor coverings.
Can I use this with Extron® devices?
Yes, the included plates are designed to accept industry standard A/V devices from manufacturers including Extron® and Legrand AVIP.
How does the cover design work on this assembly?
The cover opens a full 180 degrees and utilizes two unique spring-loaded slide egress doors to keep connections and people safe.
What is the benefit of the prewired design for installers?
The prewired assembly includes every power receptacle already installed, which helps reduce on-site labor during the installation process.
