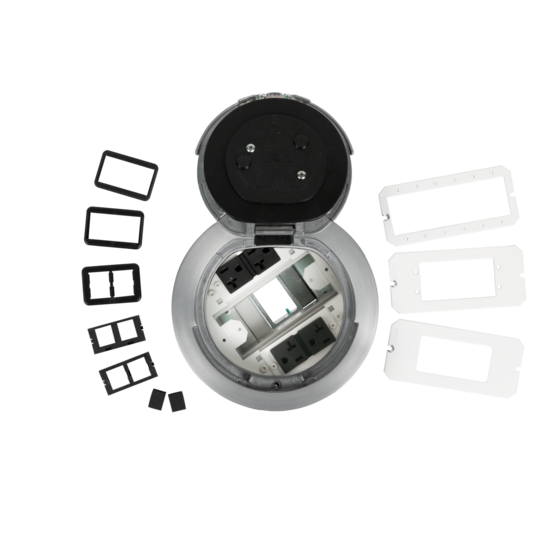

6ATC2PAA3H 3-Hour Fire Classified 6 inch Recessed Prewired Surface Style Poke-Thru Assembly in Brushed Aluminum
Prewired 6 inch recessed poke-thru assembly with 3-hour fire rating and brushed aluminum surface cover
The 6ATC2PAA3H is a prewired Evolution Series 6 inch recessed poke-thru assembly featuring a surface-style cover in a brushed aluminum finish. Designed for both new construction and retrofit applications, this unit allows installers to provide power, communications, and A/V services recessed below the floor level to maximize device protection. This assembly comes prewired with every power receptacle already installed to reduce on-site labor. It utilizes intumescent material to maintain a 3-hour fire rating for the floor and is designed to meet ADA accessibility guidelines. The open system design accepts industry-standard devices from most manufacturers, including Extron® and Legrand AVIP. This unit is suitable for installation in carpet, tile, wood, laminate, or concrete floor coverings in meeting rooms, classrooms, or healthcare facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Color | Brushed Aluminum |
| Cover Style | Surface |
| Prewired | Yes |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What is the fire rating for the 6ATC2PAA3H?
This Evolution Series assembly is 3-hour fire classified, using intumescent material to maintain the floor's fire rating.
Which floor types is this poke-thru assembly compatible with?
This unit is designed for use with carpet, tile, wood, laminate, and concrete floor coverings.
Can I use my own A/V or communication devices with this assembly?
Yes, the open system design accepts industry-standard A/V and communication devices from most manufacturers, including Extron®.
How does the cover design work for safety?
The cover features two spring-loaded slide egress doors that open 180 degrees to keep wires, connections, and pedestrians safe.
What is the difference between this and unwired models?
This specific SKU is a prewired assembly, meaning the power receptacles are installed at the factory to save on installation labor.
