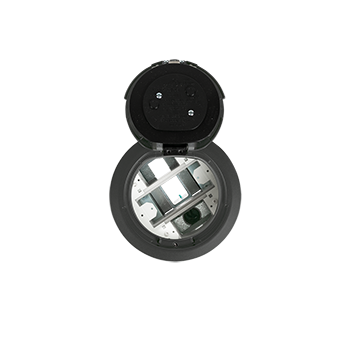

6ATC2GY3H 3-Hour Fire Classified 6 inch Recessed Unwired Surface Style Poke-Thru Assembly in Gray
6-inch recessed, unwired poke-thru assembly in gray with 3-gang capacity and 3-hour fire rating
The Wiremold 6ATC2GY3H is a 6-inch recessed, unwired poke-thru assembly designed for both new construction and retrofit applications. This unwired unit allows installers to connect conduits and complete the installation immediately, while leaving specific plate and configuration choices for a later date. Featuring a 3-gang capacity, this assembly provides a versatile foundation for power, communications, and audio/video services. The device is recessed below the floor level to maximize the longevity and protection of all connected devices. Designed for use with carpet, tile, wood, laminate, or concrete floor coverings, this model includes a surface-style cover that opens 180 degrees with sliding doors to secure connections and keep wires safe. This series meets ADA accessibility guidelines via a wide trim flange and utilizes intumescent material to maintain a 3-hour fire rating for the floor.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Color | Gray |
| Cover Style | Surface |
| Prewired | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this work with my existing power and data devices?
Yes, this is an open system that accepts industry standard power, communications, and A/V devices from most manufacturers, including Legrand AVIP and Extron®.
Can I install this in a retrofit application?
Yes, the Evolution Series 6-inch recessed poke-thru is designed for both new construction and retrofit environments.
What floor types is this compatible with?
This assembly is suitable for use with concrete, carpet, tile, laminate, and wood floor coverings.
How do I know if this meets fire safety requirements?
This model is 3-hour fire classified and utilizes intumescent material to maintain the fire rating of the floor.
Do I need to provide the wiring in this specific SKU?
No, the 6ATC2GY3H is an unwired assembly, meaning you connect the conduits now and select your specific plates and devices at a later time.
