6ATC2GY 6AT Unwired Evolution™ Poke Thru Device with Surface Style Cover in Gray
Unwired 6-inch recessed poke-thru device with surface style cover in gray, designed for flexible floor-level service access

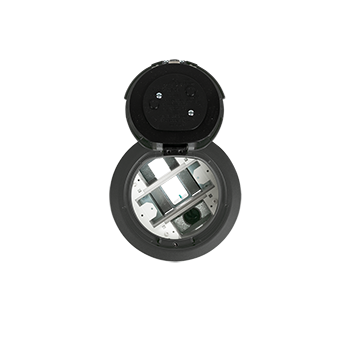

The 6ATC2GY is an unwired Evolution Series 6'' recessed poke-thru device featuring a surface style cover in a gray finish. This preassembled unit is designed to be connected to conduits immediately, allowing installers to complete the physical installation now and defer specific configuration and plate choices for a later date. Because this is an unwired model, it provides the structural framework for 3 gangs of capacity, enabling the integration of power, communications, and A/V services. The recessed design protects devices below the floor level, while the 180-degree sliding doors on the cover help keep connections and personnel safe. This unit is suitable for installations in carpet, tile, wood, laminate, or concrete floor coverings. This TAA compliant device is an open system, meaning it accepts industry standard power, communications, and A/V devices from most manufacturers, including Extron® and Legrand AVIP.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 7.25 in (18.4 cm) |
| Overall Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Width | 7.25 in (18.4 cm) |
| Color | Gray |
| Cover Style | Surface |
| Prewired | No |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will the 6ATC2GY work with my existing AV or power hardware?
Yes, this is an open system that accepts industry standard power, communications, and A/V devices from most manufacturers, including Legrand AVIP and Extron®.
What type of flooring can this poke-thru be installed in?
This device is suitable for use with carpet, tile, wood, laminate, and concrete floor coverings.
Can I configure the devices after the floor is installed?
Yes. This is an unwired, preassembled device, meaning you can connect it to conduits now and select your specific plates and configurations later.
How does this device handle fire safety requirements?
The Evolution Series uses intumescent material to maintain the 2-hour fire rating of the floor.
What is the difference between the surface style and other covers?
The 6ATC2GY features a surface style cover with 180-degree sliding doors to protect wires and connections while keeping the installation accessible.
