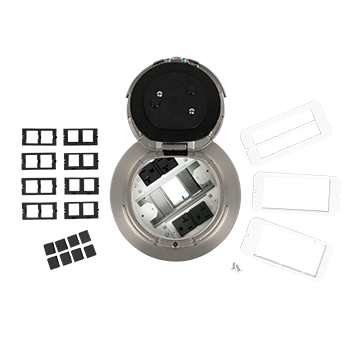

6AT2PSN3H 3-Hour Fire Classified 6 inch Recessed Prewired Flush Style Poke-Thru Assembly in Satin Nickel
Recessed 6-inch prewired poke-thru assembly with 3-gang capacity and 3-hour fire rating in a Satin Nickel finish
The 6AT2PSN3H is a 6-inch recessed poke-thru assembly from the Wiremold Evolution Series, designed for both new construction and retrofit applications. This prewired unit significantly reduces on-site labor because every power receptacle is already installed. Featuring a flush cover style, this assembly provides 3-gang capacity, allowing installers to configure power, communication, and A/V services in any location within the unit to meet specific space requirements. Once installed, the devices sit recessed below the floor level to protect equipment and extend device longevity. The Satin Nickel finish provides a durable, professional look for commercial environments such as classrooms, healthcare facilities, or training rooms. For safety, the cover features two spring-loaded sliding egress doors that allow cables to pass through while protecting connections and minimizing tripping hazards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Color | Satin Nickel |
| Cover Style | Flush |
| Prewired | Yes |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What is the fire rating for the 6AT2PSN3H poke-thru?
This assembly is 3-hour fire classified. It utilizes an intumescent material designed to maintain the fire rating of the floor for up to 3 hours.
Does this poke-thru assembly come with power receptacles installed?
Yes, the 6AT2PSN3H is a prewired assembly, meaning all power receptacles are already installed to save time during the installation process.
What kind of devices can I use with this Evolution Series assembly?
This is an open system that accepts industry standard power, communications, and A/V devices from most manufacturers, including Extron® and Legrand AVIP.
How does the cover design manage cables and safety?
The cover opens 180 degrees and features two unique spring-loaded slide egress doors. These doors allow cables to exit the unit while protecting the connections and reducing tripping hazards.
Which documents are available for submittals or BIM coordination?
Detailed documentation is available, including the Evolution Series 6" Poke Thru BIM Models (zip), the 3-Hour Fire-Classified Evolution Series 6" Poke-Thru Device PDF, and various Division 16 and 26 specification documents.
