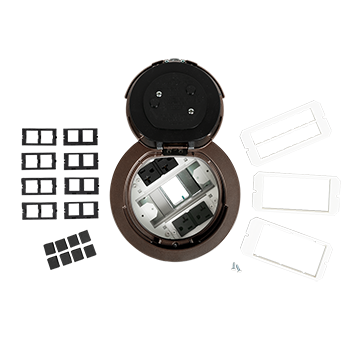

6AT2PBZ Evolution™ Recessed Prewired Assembly with Flush Style Cover in Bronze
Prewired 6-inch recessed poke-thru assembly with a bronze flush style cover for power and AV services
The Wiremold 6AT2PBZ is a prewired Evolution Series 6-inch recessed poke-thru assembly designed for both new construction and retrofit applications. This unit provides a convenient way to access power, communications, and audio/video services through a floor opening. Because this is a prewired assembly, all power receptacles are already installed, which significantly reduces labor time during installation. The recessed design protects devices and cabling by keeping them below the floor level, while the flush style bronze cover features 180-degree opening capabilities and two spring-loaded sliding egress doors to manage cable exit. This assembly is TAA compliant and utilizes an intumescent material to maintain a 2-hour fire rating. The unit offers 3-gangs of capacity, allowing installers to configure service placement anywhere within the unit to meet specific space requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 7.25 in (18.4 cm) |
| Overall Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Width | 7.75 in (19.7 cm) |
| Color | Bronze |
| Cover Style | Flush |
| Prewired | Yes |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will the 6AT2PBZ work with my existing AV equipment?
Yes, this is an open system that accepts industry standard power, communications, and A/V devices from most manufacturers, including Extron® and Legrand AVIP.
What kind of fire rating does this poke-thru assembly have?
The Evolution Series Poke-Thru utilizes intumescent material to maintain a 2-hour fire rating.
How does the cover manage cables when in use?
The flush style cover opens a full 180 degrees and includes two unique spring-loaded slide egress doors to allow cables to exit neatly while protecting users and connections.
Can I use this in a retrofit floor application?
Yes, the 6AT2PBZ is designed for both new construction and retrofit installations to provide recessed access to services.
Is this product TAA compliant for government projects?
Yes, the 6AT2PBZ is TAA compliant and features a bronze finish.
