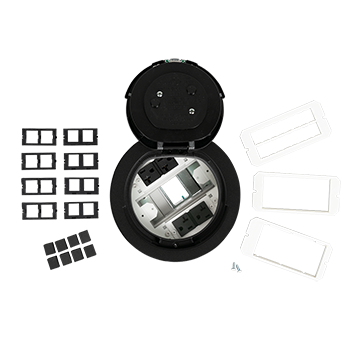

6AT2PBK 6AT Prewired Evolution™ Poke Thru Device with Flush Style Cover in Black
Prewired recessed poke-thru device with black flush cover, designed for easy floor installation in commercial spaces
The Wiremold 6AT2PBK is a prewired Evolution Series 6-inch poke-thru device featuring a flush style cover in a black finish. Designed for both new construction and retrofit applications, this recessed assembly places power, communications, and audio/video services below the floor level to provide maximum protection and device longevity. This prewired unit arrives with power receptacles already installed, allowing for a rapid "step-on-it" installation that reduces labor costs and eliminates the need for a second installer. The device features a 3-gang capacity, giving you the flexibility to configure services anywhere within the unit to meet the specific needs of your space. The cover opens a full 180 degrees and includes two spring-loaded, sliding egress doors that allow cables to exit neatly while reducing potential tripping hazards. This TAA compliant solution is an open system, accepting industry-standard power, communications, and A/V devices from most major manufacturers, including Extron® and Legrand AVIP.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 7.25 in (18.4 cm) |
| Overall Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Width | 7.25 in (18.4 cm) |
| Color | Black |
| Cover Style | Flush |
| Prewired | Yes |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Yes, the Evolution Series is an open system that accepts industry-standard devices from manufacturers like Extron® and Legrand AVIP.
Yes, the Evolution Series is an open system that accepts industry-standard devices from manufacturers like Extron® and Legrand AVIP.
How does the cover design help prevent tripping hazards?
The cover features two unique spring-loaded slide egress doors that allow cables to pass through neatly while keeping wires and people safe.
What is the installation requirement for this poke-thru?
The unit features a "step-on-it" installation process designed for quick setup without the need for additional fasteners or a second installer.
Can I control plug loads wirelessly with this device?
Yes, when the cover is closed, plug load control can be managed up to 30 feet away when used with Pass & Seymour® Wireless RF receptacles.
What documentation is available for submittals?
You can access BIM models, brochures, and Div 16 or Div 26 installation documents in the Resources tab for your project submittals.
