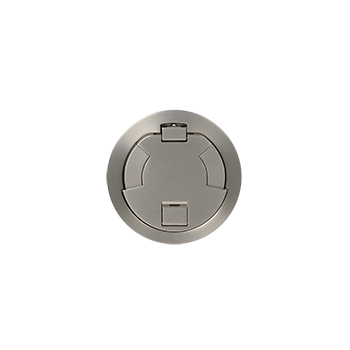

6AT2PAVSN3H 3-Hour Fire Classified 6 inch Recessed Prewired AV Flush Style Poke-Thru Assembly in Satin Nickel
6 inch recessed prewired poke-thru assembly with 3-gang capacity and a Satin Nickel flush-style cover
The 6AT2PAVSN3H is a 6 inch recessed Evolution Series poke-thru assembly designed for both new construction and retrofit applications. This prewired unit significantly reduces on-site labor because every power receptacle is already installed prior to arrival. This 3-gang capacity model allows installers to configure power, communications, and audio/video services in any location within the unit to meet specific room requirements. Because the devices are recessed below the floor level, they are protected from damage and extend the longevity of the connections. The Satin Nickel flush-style cover features two spring-loaded sliding doors that open up to 180 degrees, allowing cables to egress neatly while minimizing tripping hazards in high-traffic environments like classrooms or healthcare facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Color | Satin Nickel |
| Cover Style | Flush |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Questions about this part
Will this poke-thru fit my existing A/V or communication devices?
Yes, the unit includes plates designed to accept industry standard A/V devices from most manufacturers, including Extron® and Legrand AVIP.
How much labor is saved with this specific SKU?
This is a prewired assembly, meaning the power receptacles are already installed in the unit before it arrives at the job site.
How is the cable managed when the cover is open?
The cover features two unique spring-loaded slide egress doors that allow cables to exit the unit neatly to prevent tripping.
What is the fire rating for this poke-thru assembly?
This assembly is 3-hour fire classified and is cULus listed.
What is the difference between this and the other finishes in the Evolution Series?
This SKU features a Satin Nickel finish with a durable powder coat, whereas other options in the series include Aluminum, Black, Brass, Bronze, or Gray.
