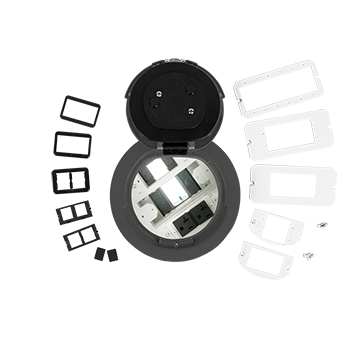

6AT2PAVGY Evolution™ Recessed Prewired AV Assembly with Flush Style Cover in Gray
Recessed 6" prewired poke-thru assembly with 3-gang capacity and gray flush style cover for floor-level AV and power access
The Wiremold 6AT2PAVGY is a prewired Evolution Series 6" recessed poke-thru assembly designed for both new construction and retrofit applications. This unit provides immediate access to power, communications, and AV services recessed below the floor level to maximize device protection in high-traffic areas. As a prewired assembly, it significantly reduces labor costs because every power receptacle is already installed. This specific model features a flush style gray cover that opens 180 degrees via two spring-loaded, slide egress doors to ensure user safety and connection security. With 3 gangs of capacity, the assembly is compatible with industry-standard communications and A/V devices from manufacturers like Extron® and Legrand AVIP. It is engineered for use with carpet, tile, wood, laminate, or concrete floor coverings in environments such as meeting rooms, classrooms, and healthcare facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 7.25 in (18.4 cm) |
| Overall Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Width | 7.25 in (18.4 cm) |
| Color | Gray |
| Cover Style | Flush |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What is the installation process for the 6AT2PAVGY?
The 6AT2PAVGY features a "step-on-it" installation process, which allows for quick setup without requiring a second installer or additional fasteners.
Which flooring types is this poke-thru compatible with?
This device is engineered for use with concrete, carpet, laminate, tile, and wood floor coverings.
What type of cover does the 6AT2PAVGY come with?
This SKU features a flush style gray cover designed with two spring-loaded slide egress doors that provide a 180-degree opening.
Will this work with my existing AV equipment?
Yes, the assembly is A/V ready and includes plates designed to accept industry standard devices from manufacturers such as Extron® and Legrand AVIP.
Is the 6AT2PAVGY TAA compliant?
Yes, this product is TAA compliant and carries cULus and RoHS certifications.
