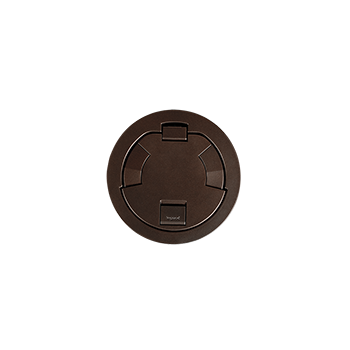

6AT2PAVBZ Evolution™ Recessed Prewired AV Assembly with Flush Style Cover in Bronze
Prewired 6" recessed poke-thru assembly with 3-gang capacity and flush bronze cover for high-traffic floor applications
The Wiremold 6AT2PAVBZ is a prewired Evolution Series 6" recessed poke-thru device designed to provide immediate access to power, communications, and A/V services below floor level. This 3-gang assembly significantly reduces on-site labor because every power receptacle is already installed within the unit. The assembly is suitable for both new construction and retrofit projects in environments like meeting rooms, classrooms, healthcare facilities, or commercial kiosks. The bronze-finished flush style cover is engineered for high-traffic areas, utilizing two spring-loaded slide egress doors that open a full 180 degrees to protect internal connections and cables. This unit is compatible with various floor coverings including carpet, tile, wood, laminate, and concrete. The recessed design ensures all devices remain protected beneath the floor surface, enhancing the longevity of the hardware.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 7.25 in (18.4 cm) |
| Overall Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Width | 7.25 in (18.4 cm) |
| Color | Bronze |
| Cover Style | Flush |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this poke-thru work with my existing A/V or data hardware?
Yes, the assembly includes plates designed to accept industry-standard A/V and communication devices from most manufacturers, including Extron® and Legrand AVIP.
What type of flooring is this unit compatible with?
The 6AT2PAVBZ is designed for use with several flooring types, including wood, laminate, tile, carpet, and concrete.
What is the main advantage of the Evolution Series prewired assembly?
It offers a 'step-on-it' installation that eliminates the need for a second installer or additional fasteners, as all power receptacles come pre-installed.
How does the cover design protect internal components?
The cover features two spring-loaded slide egress doors that open 180 degrees, keeping connections and wiring safe from foot traffic.
Is this product TAA compliant for government contracts?
Yes, the 6AT2PAVBZ is TAA compliant and carries cULus, RoHS, and USMCA certifications.
