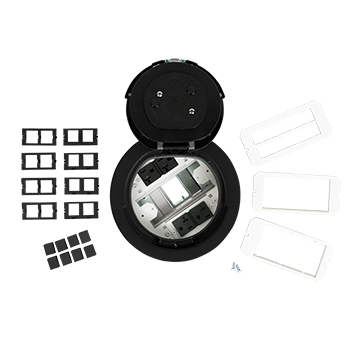

6AT2PAVBK3H 3-Hour Fire Classified 6 inch Recessed Prewired AV Flush Style Poke-Thru Assembly in Black
Prewired 6-inch recessed poke-thru assembly with 3-gang capacity and a black flush-style cover
The 6AT2PAVBK3H is a prewired Evolution Series 6-inch poke-thru assembly designed for both new construction and retrofit applications. This 3-hour fire-classified unit provides a recessed solution for power, communications, and AV services, keeping all devices protected below the floor level. The assembly arrives prewired with power receptacles already installed to reduce on-site labor. It features a black, flush-style cover that opens 180 degrees, utilizing two spring-loaded slide egress doors to protect cables and minimize tripping hazards in high-traffic areas like classrooms, training rooms, and healthcare facilities. This assembly is A/V ready, utilizing plates that accept industry-standard devices from manufacturers such as Extron® and Legrand AVIP.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Color | Black |
| Cover Style | Flush |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Questions about this part
What kind of AV and communication devices can I use with this poke-thru?
The assembly is A/V ready and includes plates designed to accept industry-standard devices from manufacturers like Extron® and Legrand AVIP.
Does this assembly require a second installer to install?
The 'step-on-it' installation design allows for quick setup without the need for a second installer or additional fasteners.
What is the benefit of the cover design for cable management?
The cover features two spring-loaded slide egress doors that allow cables to exit neatly while protecting them and reducing tripping hazards.
How does the recessed design help protect the equipment?
All power, communication, and A/V devices are recessed below the floor level to ensure maximum device protection and longevity.
Is there documentation available for submittals?
Yes, a 3-Hour Fire-Classified Evolution Series 6" Poke-Thru Device document is available for technical review.
