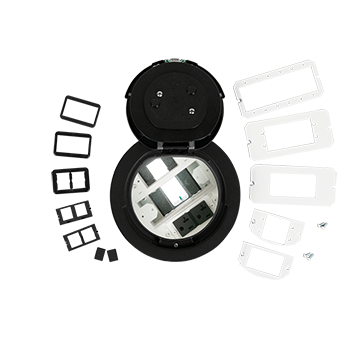

6AT2PAVBK 6AT Prewired AV Evolution™ Poke Thru Device with Flush Style Cover in Black
Prewired 6-inch poke-thru device featuring a black flush-style cover and 3-gang capacity for recessed floor access
The 6AT2PAVBK is a prewired AV Evolution™ poke-thru device designed for both new construction and retrofit projects. This 6-inch unit provides recessed access to power, communications, and audio/video services below the floor level, which protects the devices and maintains floor integrity. As a prewired assembly, this SKU arrives with every power receptacle already installed, allowing for a faster installation process that does not require a second installer. The unit features 3-gangs of capacity, allowing you to configure services specifically for the requirements of your space. The black flush-style cover includes two unique spring-loaded slide egress doors that open 180 degrees, facilitating neat cable egress while minimizing tripping hazards. This TAA compliant solution is suitable for high-traffic environments like classrooms, meeting rooms, and healthcare facilities where open-space architecture is used.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 7.25 in (18.4 cm) |
| Overall Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Width | 7.25 in (18.4 cm) |
| Color | Black |
| Cover Style | Flush |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What type of device coverage does the 6AT2PAVBK provide?
This unit provides recessed access for power, communications, and audio/video services. The 3-gang capacity is compatible with industry standard devices from manufacturers like Extron® and Legrand AVIP.
Does this poke-thru require a second installer for setup?
No, this is a prewired assembly. The unit arrives with all power receptacles already installed, designed for a quick installation without the need for additional labor.
How does the cover handle cable egress and safety?
The black flush-style cover features two spring-loaded slide egress doors. These allow cables to exit the unit neatly while helping to prevent tripping hazards in high-traffic areas.
What is the depth requirement for the floor installation?
The unit has a depth of 16.25 in (41.3 cm), ensuring that all power and communication devices are recessed safely below the floor level.
Which documents are available for submittals and BIM?
Detailed documentation is available, including Evolution Series Poke-Thru Division 26 and Division 16 documents, as well as BIM models for system planning.
