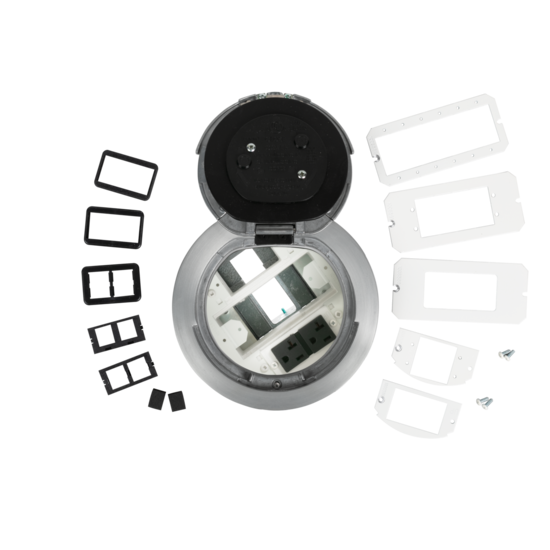

6AT2PAVAA3H 3-Hour Fire Classified 6 inch Recessed Prewired AV Flush Style Poke-Thru Assembly in Brushed Aluminum
Prewired 6-inch recessed poke-thru assembly with a 3-gang capacity and brushed aluminum flush-style cover
The 6AT2PAVAA3H is a prewired 6-inch recessed poke-thru assembly from the Evolution Series, designed for both new construction and retrofit applications. This unit provides a centralized hub for power, communications, and audio/video services recessed below the floor level to protect devices and extend longevity. This specific SKU features a brushed aluminum finish and a flush cover style. The assembly is engineered for high-traffic environments, utilizing a cover that opens 180 degrees with two spring-loaded sliding doors to manage cable egress while reducing tripping hazards. The 3-gang capacity allows for a custom configuration of services to meet the specific requirements of meeting rooms, classrooms, or healthcare facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Color | Brushed Aluminum |
| Cover Style | Flush |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Questions about this part
What kind of A/V equipment is compatible with this poke-thru?
The included plates are designed to accept industry-standard communications and A/V devices from various manufacturers, including Legrand AVIP and Extron®.
Does this assembly come ready for installation?
Yes, this is a prewired assembly that comes with power receptacles already installed, intended to simplify the installation process.
How does the cover design help prevent tripping?
The cover features two unique spring-loaded sliding doors that allow cables to egress neatly from the unit while maintaining a flush profile.
Is this poke-thru suitable for high-traffic commercial spaces?
Yes, the brushed aluminum finish is part of a durable, high-end series that includes a tough clear powder coat for high-traffic environments.
What documentation is available for submittals?
You can refer to the 3-Hour Fire-Classified Evolution Series 6" Poke-Thru Device PDF for technical details regarding its fire rating.
