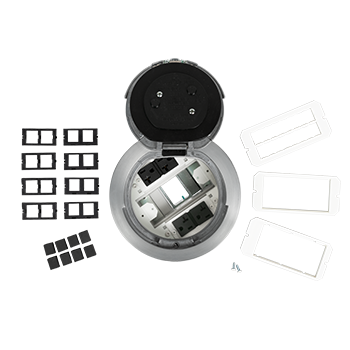

6AT2PAA3H 3-Hour Fire Classified 6 inch Recessed Prewired Flush Style Poke-Thru Assembly in Brushed Aluminum
Prewired 6-inch recessed poke-thru assembly in brushed aluminum with a 3-hour fire rating and flush cover style
The 6AT2PAA3H is a prewired Evolution Series 6-inch recessed poke-thru assembly designed for both new construction and retrofit applications. This assembly comes with every power receptacle already installed to reduce labor time on-site. Featuring a flush cover style in a brushed aluminum finish, this unit is recessed below the floor level to protect all power, communication, and A/V devices. It is engineered for high-traffic areas like classrooms and training rooms, utilizing an intumescent material to maintain a 3-hour fire rating for the floor. The cover design includes two spring-loaded sliding doors that open 180 degrees to allow cables to egress while minimizing tripping hazards. This assembly supports industry standard power and A/V devices from manufacturers like Legrand AVIP and Extron.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Color | Brushed Aluminum |
| Cover Style | Flush |
| Prewired | Yes |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will the 6AT2PAA3H fit my existing floor configuration?
This 6-inch assembly is designed for both retrofit and new construction environments, including meeting rooms and healthcare facilities.
What devices can be used with this poke-thru assembly?
The system is an open system that accepts industry standard power, communications, and A/V devices from most manufacturers, including Extron and Legrand AVIP.
How does the cover design help with cable management?
The cover features two spring-loaded slide egress doors that allow cables to pass through neatly while protecting connections and reducing trip hazards.
Is this unit fire rated for commercial use?
Yes, this model is 3-hour fire classified, utilizing intumescent material to maintain the fire rating of the floor.
Does this assembly require an additional installer for setup?
The 'step-on-it' installation design allows for quick setup without the need for a second installer or additional fasteners.
