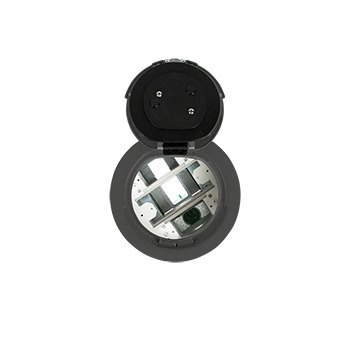

6AT2GY3H 3-Hour Fire Classified 6 inch Recessed Unwired Flush Style Poke-Thru Assembly in Gray
6-inch recessed unwired poke-thru assembly in Gray, 3-hour fire classified, for use in carpet, tile, wood, or laminate concrete floors.
The 6AT2GY3H is a 3-hour fire classified, 6-inch recessed unwired poke-thru assembly designed for both new construction and retrofit applications. This Evolution Series device allows installers to connect conduits and complete the floor installation immediately, while deferring specific configuration and plate choices until a later date. Once installed, the assembly provides recessed access to power, communications, and audio/video services below the floor level, which offers maximum protection for the installed devices. This flush-style assembly is suitable for high-traffic environments such as classrooms, healthcare facilities, meeting rooms, and kiosks. It is compatible with various floor coverings including carpet, tile, wood, laminate, and concrete. Because this is an unwired model, it provides an open system that accepts industry-standard power, communications, and A/V devices from various manufacturers, including Extron® and Legrand AVIP.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Overall Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Color | Gray |
| Cover Style | Flush |
| Prewired | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Questions about this part
What kind of floor coverings is this poke-thru compatible with?
This assembly is designed for use with carpet, tile, wood, laminate, and concrete floor coverings.
Do I need to choose my power or A/V devices before installing this?
No, this is an unwired assembly, which allows you to complete the conduit and floor installation now and select your specific configuration and plates later.
What is the difference between this and a prewired assembly?
The 6AT2GY3H is an unwired model, meaning it provides the housing and conduit connection but does not include the internal power or data components.
Which documents do I need for a submittal regarding fire rating?
You can refer to the 3-Hour Fire-Classified Evolution Series 6" Poke-Thru Device PDF for specific fire rating documentation.
Is this assembly suitable for high-traffic areas?
Yes, the recessed design and the specific cover style are designed to provide device longevity and protection in high-traffic environments like classrooms or meeting rooms.
