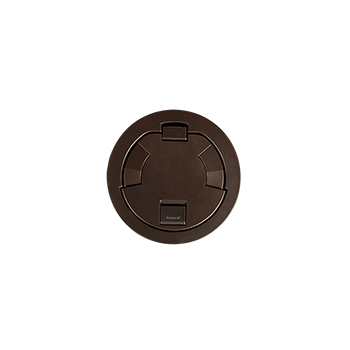

6AT2BZ3H 3-Hour Fire Classified 6 inch Recessed Unwired Flush Style Poke-Thru Assembly in Bronze
6-inch recessed unwired poke-thru assembly in Bronze, featuring a flush cover and 3-gang capacity for recessed floor services
The 6AT2BZ3H is a 6-inch recessed unwired poke-thru assembly finished in Bronze. Designed for both new construction and retrofit applications, this Evolution Series device allows installers to provide power, communications, and AV services recessed below the floor level to maximize device protection. This specific 6AT2BZ3H model is provided as an unwired assembly, allowing you to connect to conduits and complete the installation now, while deferring the final plate and configuration choices for later. The flush style cover features two spring-loaded slide egress doors that open a full 180 degrees to keep wires and connections safe from foot traffic. This assembly is suitable for installation in carpet, tile, wood, laminate, or concrete floor coverings. The 3-gang capacity allows for multiple service configurations to meet the specific needs of meeting rooms, classrooms, or healthcare facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Color | Bronze |
| Cover Style | Flush |
| Prewired | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Questions about this part
Is the 6AT2BZ3H prewired or unwired?
This is an unwired assembly. You can install the assembly and connect it to conduits now, then select and install your specific plates and service configurations at a later time.
What types of flooring is this poke-thru compatible with?
The 6AT2BZ3H is designed for use in several floor coverings, including carpet, tile, wood, laminate, and concrete.
What is the benefit of the recessed design?
Because all power, communications, and A/V devices are recessed below the floor level, the assembly provides maximum protection and increased device longevity.
Can I use my own third-party devices in this assembly?
Yes, this is an open system that accepts industry standard power, communications, and A/V devices from most manufacturers, including Extron®.
Which document should I use for submittals?
You can refer to the 3-Hour Fire-Classified Evolution Series 6" Poke-Thru Device PDF for technical details regarding fire ratings.
