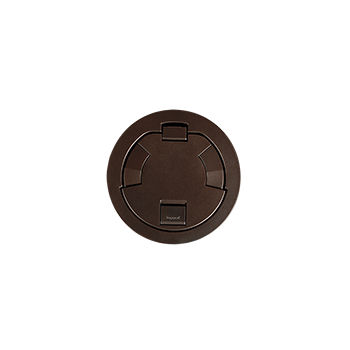

6AT2BZ Evolution™ Recessed Assembly with Flush Style Cover in Bronze
Bronze 6-inch recessed poke-thru assembly with flush cover, offering 3-gang capacity for power and communications in high-traffic areas
The 6AT2BZ is a recessed Evolution Series 6" Poke-Thru assembly by Wiremold featuring a Bronze flush-style cover. Designed for both new construction and retrofit applications, this assembly provides a solution for accessing power, communications, and audio/video services through floorings such as carpet, tile, wood, laminate, or concrete. This specific SKU is an unwired, preassembled unit, allowing installers to connect to conduits and complete the installation before final device configuration. Once installed, the recessed design protects all power and A/V devices below the floor level. The cover features a unique 180-degree opening mechanism with two spring-loaded slide egress doors to ensure the safety of users and the integrity of connections. This TAA compliant device is an open system, meaning it accepts industry-standard power, communications, and A/V devices from most manufacturers, including Extron® and Legrand AVIP.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 7.25 in (18.4 cm) |
| Overall Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Width | 7.75 in (19.7 cm) |
| Color | Bronze |
| Cover Style | Flush |
| Prewired | No |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What devices can I install in the 6AT2BZ assembly?
This is an open system that accepts industry-standard power, communications, and A/V devices from most manufacturers, such as Extron® and Legrand AVIP.
Will this work with my existing floor covering?
This assembly is designed for use with carpet, tile, wood, laminate, and concrete floor coverings.
Is this unit pre-wired with devices?
No, this is a preassembled unwired poke-thru device; you will need to add your specific power and communication devices after installation.
What is the difference between this and a standard surface mount?
The 6AT2BZ is a recessed assembly that places all services below the floor level for increased device protection and a flush profile.
Which document should I use for submittals?
For installation and technical details, refer to the Evolution Series 6" Poke Thru Devices brochure or the specific Div 16 or Div 26 documentation.
