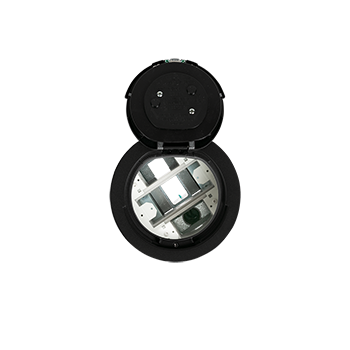

6AT2BK Evolution™ Recessed Assembly with Flush Style Cover in Black
6" recessed poke-thru assembly with black flush cover, 3-gang capacity, and TAA compliance for high-traffic floor applications
The 6AT2BK Evolution™ Recessed Assembly provides a secure, low-profile solution for delivering power, communications, and A/V services through floor coverings like carpet, tile, wood, or laminate concrete. This un-wired, preassembled poke-thru device is designed for both new construction and retrofit applications, allowing installers to connect to conduits now and finalize specific configuration and plate choices at a later date. Featuring a 3-gang capacity, the assembly supports an open system compatible with industry-standard devices from most manufacturers, including Extron® and Legrand AVIP. This specific model features a black, flush-style metal cover with spring-loaded slide egress doors that open 180 degrees. This design protects connections and wires from foot traffic while ensuring user safety in high-traffic environments like meeting rooms, classrooms, or healthcare facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 7.25 in (18.4 cm) |
| Overall Dimensions | 11.5" x 11.5" x 19.5" (292.1 x 292.1 x 495.3 mm) |
| Width | 7.75 in (19.7 cm) |
| Color | Black |
| Cover Style | Flush |
| Prewired | No |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What devices can I use with the 6AT2BK assembly?
This is an open system that accepts industry-standard power, communications, and A/V devices from most manufacturers, such as Extron® and Legrand AVIP.
Do I need to choose my plates and inserts before installing this?
No, this is an unwired, preassembled device. You can connect it to conduits immediately and select your specific configuration and plate choices later.
What type of flooring is this poke-thru compatible with?
The Evolution Series 6" devices are designed for use with carpet, tile, wood, laminate, and concrete floor coverings.
Is this 6AT2BK assembly TAA compliant?
Yes, this product is TAA compliant and carries cULus and RoHS certifications.
How does the cover design work for safety?
The flush-style cover features two spring-loaded slide egress doors that open a full 180 degrees to keep connections and people safe.
