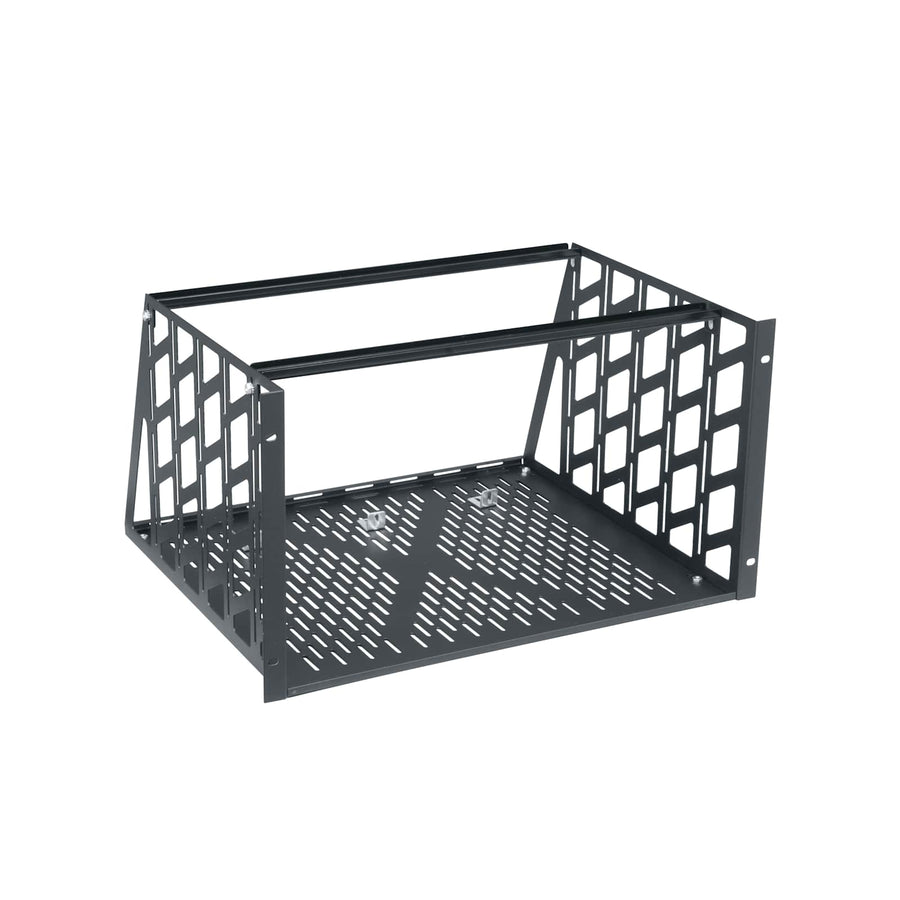

6 RU Clamping Rackshelf
6 RU clamping rackshelf with 100 lbs capacity, rubber-lined clamps, and vented bottom for cooling
The Middle Atlantic CAP6 is a 6 RU clamping rackshelf designed to secure components within a rack using rubber-lined clamps that grip from the top. This shelf features adjustable rear "L" brackets to prevent equipment from being pushed back during use. Built with a robust 16-gauge steel design, this shelf is engineered to maintain structural integrity even in mobile applications. The usable shelf area measures 17.38"w x 15.10"d. To facilitate heat dissipation, the unit includes vented sides and a vented bottom. This TAA-compliant shelf is finished in a durable black powder coat and ships ready-to-assemble to save space during transit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 15.37 in (39 cm) |
| Height | 10.5 in (26.7 cm) |
| Rack Units | 6 RU |
| Shipping Weight | 10 lbs (4.5 kg) |
| Usable Depth | 15.1 in (38.4 cm) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 19 in (48.3 cm) |
| Mounting Points | 2 |
| UPC | 656747003134 |
| Certifications | UL Listed |
Resources
You'll need these with it
50 CFM Component Cooler with Platform
COMP-COOL50P$474.30
Shelf Mount Power, 8 Outlet, 15A, Basic Surge Protection
PD-815SC-PBSH$333.00
50 CFM Component Cooler, 220 - 240VAC
ICOMP-COOL50$379.80
50 CFM Component Cooler
COMP-COOL50$351.90
50 CFM Component Cooler with Platform, 220 - 240VAC
ICOMP-COOL50PDiscontinued
8 CFM Component Cooler, 220 - 240VAC - 3 Piece
ICOMP-COOL-3Discontinued
8 CFM Component Cooler, 220 - 240VAC
ICOMP-COOLDiscontinued
8 CFM Component Cooler - 3 Piece
COMP-COOL-3Discontinued
Questions about this part
Will the CAP6 hold my heavy equipment?
The CAP6 has a weight capacity of 100 lbs (45.4 kg), making it suitable for various professional components.
How much usable space is available on the shelf?
The usable shelf area provides a footprint of 17.38"w x 15.10"d, with a total depth of 15.37 in (39 cm).
How do I prevent my equipment from sliding back on the shelf?
You can use the integrated adjustable rear "L" brackets to stop units from being pushed back inside the rack.
Is the CAP6 compatible with cooling accessories?
Yes, this shelf is compatible with several cooling options, including the COMP-COOL50 and the 8 CFM COMP-COOL-3.
What documentation is available for submittals?
The CAPX Series Instruction Sheet is available to assist with installation and operational details.
