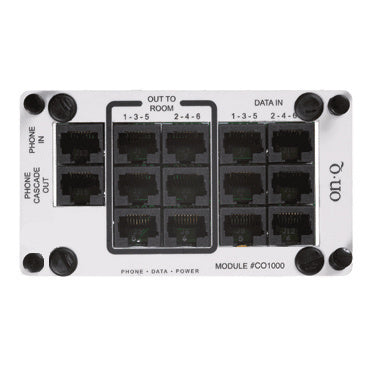

6-Port Phone/Data Module
Distributes two phone lines and one 100BASE-T data connection to six rooms using a single Cat5e cable pull
The On-Q CO1000 is a structured wiring module designed to facilitate the distribution of phone and data services to up to six rooms. This module is particularly effective as a retrofit solution for existing structured wiring systems where there are a limited number of category cable runs available. By using a single pull of Cat5e cable, this unit supports up to two phone lines and one 100BASE-T data connection. To complete the installation and provide outlet functionality, this module must be used in conjunction with the WP1000 phone/data strap.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Resources
Questions about this part
What do I need to complete the installation with the CO1000?
You must use the WP1000 phone/data strap on your outlets to complete the solution.
How many data and phone lines can this module handle?
The CO1000 supports one 100BASE-T data connection and up to two phone lines per Cat5e pull.
Is the mounting bracket included for this module?
Yes, the bracket is included with the CO1000 module.
Can this be used to expand an existing structured wiring system?
Yes, it is an ideal retrofit solution when you have limited category cable runs available in the building.
