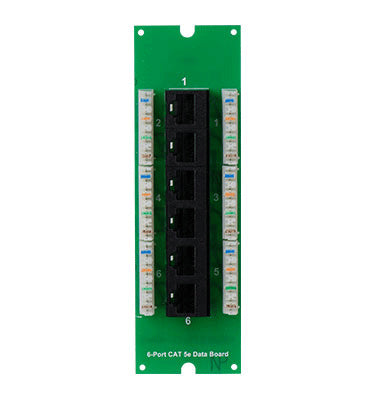

6-Port Cat5e Data Board for MDU enclosure
AC0506
6-port Cat5e patch panel designed for installation within an EN0800 MDU enclosure
The On-Q AC0506 is a 6-port Cat5e data board designed to serve as a termination point for up to six Ethernet drops. This component is specifically built to be installed into an EN0800 enclosure, making it a dedicated solution for structured wiring in small homes or multi-dwelling units (MDU). For installations requiring higher performance standards, the AC0606 is the Cat6 version of this board.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
·Provides termination for 6 Ethernet drops·Designed specifically for EN0800 MDU enclosures·Cat5e rated for basic structured wiring applications·Alternative Cat6 version available via SKU AC0606
Specifications
| Length | 0.75 in (1.9 cm) |
| Color | Green and Black |
| Number of Ports | 6 |
Resources
Questions about this part
Will this board fit in my MDU enclosure?
This specific board is designed to be installed within an EN0800 enclosure.
What is the difference between the AC0506 and the AC0606?
The AC0506 is a Cat5e board, while the AC0606 is the Cat6 version of this component.
