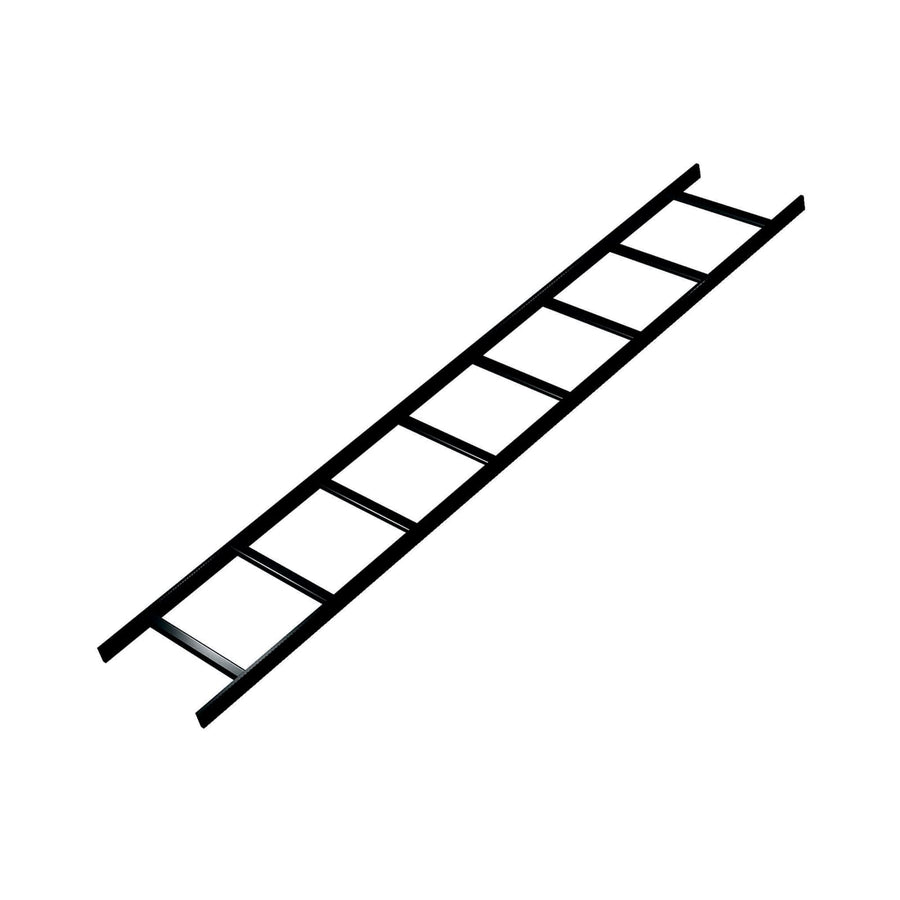

6 Ft. Cable Ladder, 12 Inches Wide
6 ft. cable ladder section, 12 in. width, featuring highly durable scratch resistant black finish and TAA compliance
The CLB-6 is a 6 ft. section of cable ladder designed for professional cable management in both new and existing installations. Measuring 71 in. in length and 12 in. in width, this 1.5 in. high ladder component is built with strong welded sections to ensure durability. It is part of the Middle Atlantic Cable Ladder series and is TAA compliant. This ladder is finished in a highly durable, scratch resistant black coating. For ease of transport, each ladder section is individually boxed and includes handles. The CLB-6 is designed to be compatible with most popular ladder brands and a wide range of accessories, including center support brackets, splice kits, and elevation kits.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 1.5 in (3.8 cm) |
| Length | 71 in |
| Package Count | 1 |
| Shipping Weight | 16 lbs (7.3 kg) |
| Width | 12 in (30.5 cm) |
| Component Type | Cable Ladder |
| TAA Compliant | Yes |
| UPC | 656747037122 |
| Certifications | TAA |
Resources
You'll need these with it

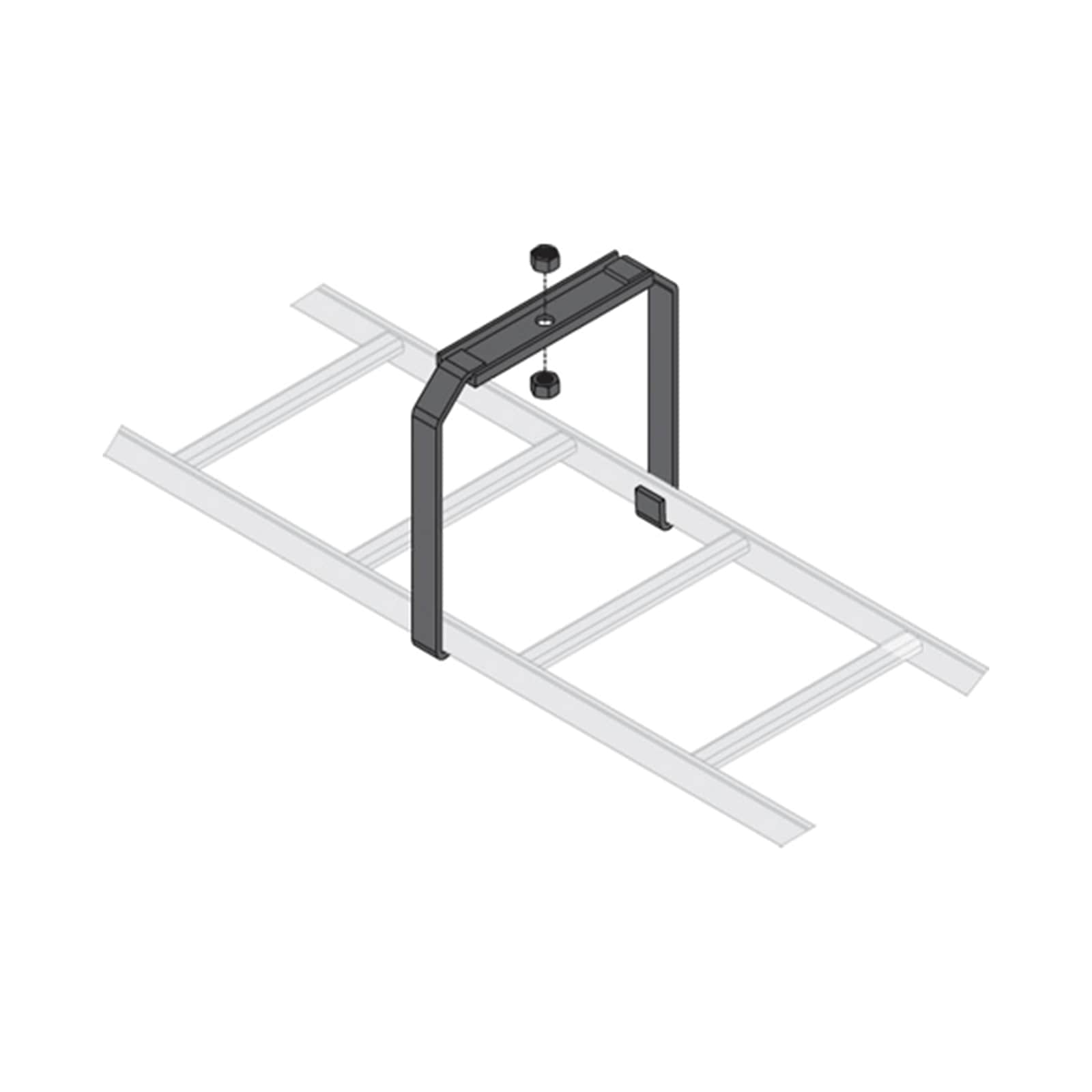

Ladder Center Support Bracket, 12 Inches Wide
CLB-CSB$66.60
Horiz. 90° Tee Splice Kit - 6 Piece
CLH-HTS-6$113.40
Ladder Adapter Top
MW-LA$125.10
Top Ladder Adapter for MK Series Racks
MK-LA$95.40
Ladder End Support Kit
CLH-RES$61.20
5/16 Inch J-Bolt with Nuts - 1 Pair
CLH-JBOLT$11.70
Ladder Side Drop with Spools, 8 Inches Wide
CLH-SD8$117.00
Horiz. 90° Tee Splice Kit
CLH-HTS$21.60
Questions about this part
What accessories are compatible with the CLB-6 ladder?
The CLB-6 is compatible with numerous accessories including the CLB-CSB center support bracket, CLH-HTS-6 tee splice kits, and various elevation kits such as the CLH-ELS-13-18.
Is the CLB-6 suitable for government or TAA-compliant projects?
Yes, the CLB-6 is TAA compliant, making it suitable for projects with specific procurement requirements.
How is the CLB-6 ladder transported to the job site?
Each ladder section is individually boxed and features handles to facilitate easier transport for the installer.
Can the CLB-6 be used in retrofit installations?
Yes, this cable ladder section is designed to work effectively in both new constructions and existing installations.
Which Middle Atlantic documents are available for the CL series?
Installers can access the CL Series A&E Specification Sheet, CAD Technical Specification Drawings, and Revit Models for submittals.
