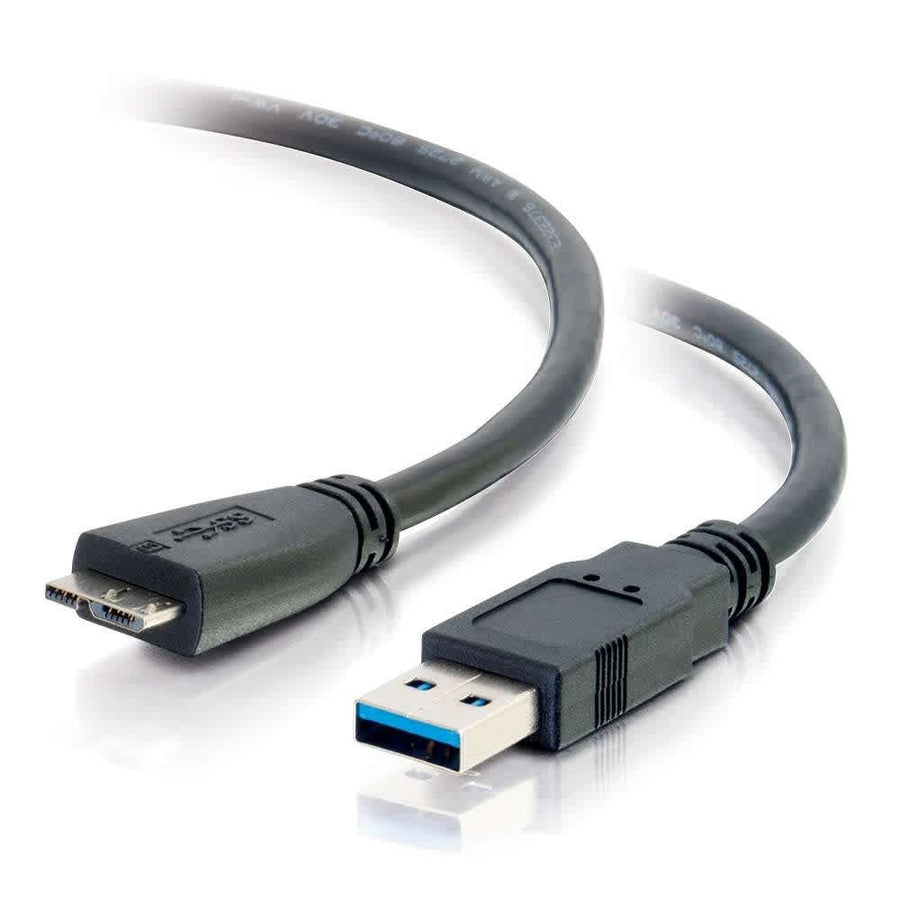

6.6ft (2m) USB 3.0 A Male to Micro B Male Cable
6.6ft USB 3.0 A Male to Micro B Male cable for SuperSpeed data transfer and 900 mA power delivery
The C2G CG54177 is a 6.6 ft (2 m) USB 3.0 A Male to Micro B Male cable designed for high-speed peripheral connectivity. This cable facilitates SuperSpeed data transfers at rates up to 4.8 Gbps when utilized with a compliant host and device, making it suitable for hard drive enclosures, printers, modems, and cameras. It features an overmolded, blue-coded connector to quickly identify USB 3.0 compatibility. For reliable signal integrity, the construction includes foil and braid shielding to mitigate EMI/RFI interference and twisted pair architecture to minimize crosstalk. This cable provides up to 900 mA of power, offering significantly more current than the 500 mA available in USB 2.0 standards. While built for USB 3.0, this cable maintains backwards compatibility with USB 2.0 (480 Mbps) and USB 1.1 devices. The PVC jacket ensures durability for professional installation environments.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Amps | 900 mA |
| Cable Length | 6.6 ft (2 m) |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB 3.0 A Male(1) USB 3.0 A Male |
| Connector 2 | (1) USB 3.0 Micro-B Male(1) USB 3.0 Micro-B Male |
| Product Type | Cable |
All other specifications 7
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120541776 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Will this CG54177 cable work with my USB 2.0 devices?
Yes, the CG54177 is backwards compatible with USB 2.0 and USB 1.1 devices, though they will operate at the lower USB 2.0 transmission speeds and power levels.
What is the maximum data transfer speed of this cable?
This USB 3.0 cable supports SuperSpeed data transfers with a bandwidth of up to 4.8 Gbps when connected to a compliant host.
How much power can this cable deliver to my peripheral?
This cable is designed to provide up to 900 mA of power, which is double the 500 mA standard available through USB 2.0 connections.
Is this cable suitable for high-speed external hard drives?
Yes, it is specifically designed to provide the necessary bandwidth and power for SuperSpeed peripherals like hard drive enclosures.
How does this cable handle electromagnetic interference?
The cable features both foil and braid shielding combined with twisted pair construction to reduce EMI/RFI interference and crosstalk.
