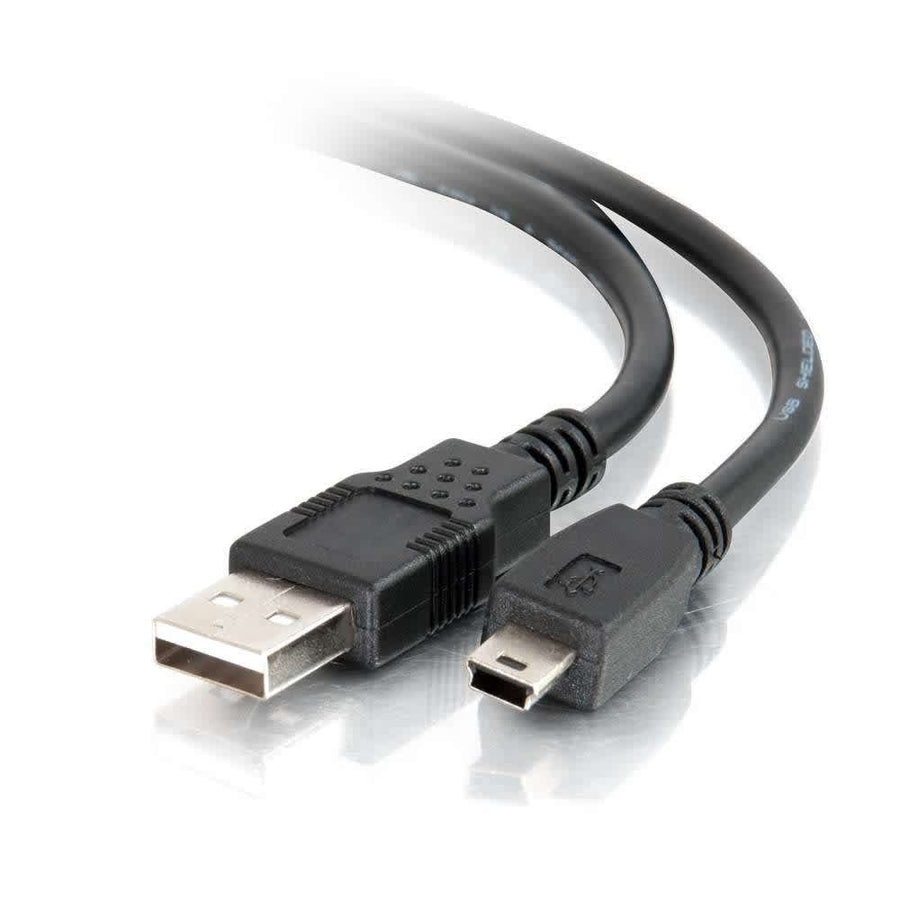

6.6ft (2m) USB 2.0 A to Mini-B Cable
6.6ft (2m) USB 2.0 A to Mini-B cable for high-speed bidirectional data transfer between computers and Mini-USB peripherals
The CG27005 is a 6.6ft (2m) USB 2.0 A to Mini-B cable designed for high-speed data transfer between computers and a variety of Mini-USB peripherals. This cable facilitates bidirectional signal transmission, making it ideal for transferring files, such as pictures, from digital cameras to a PC or Mac. It supports USB 2.0 data transfer rates up to 480 Mbps, while remaining backwards compatible with USB 1.1 (12 Mbps) and USB 1.0 (1.5 Mbps) devices. The construction features twisted pair wiring along with foil and braid shielding to reduce EMI/RFI interference and mitigate crosstalk, ensuring error-free high-speed data transmission. This cable is suitable for use with many digital camera models, mobile phones, MP3 players, and PDAs. It is built with a PVC jacket and is rated for operating temperatures ranging from -4°F to 176°F (-20°C to 80°C). This 2m cable is a reliable choice for office spares or as a replacement for lost connectivity cables.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 1.85 in (47 mm) |
| Cable Length | 6.6 ft (2 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 80% RH (Non-Condensing) |
All other specifications 16
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB Mini-B Male(1) USB Mini-B Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120270058 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the maximum data transfer rate of the CG27005?
The CG27005 supports USB 2.0 data transfer rates up to 480 Mbps, but it is also backwards compatible with USB 1.1 (12 Mbps) and USB 1.0 (1.5 Mbps) devices.
Will this cable work with my Mac or PC?
Yes, the CG27005 is compatible with both PC and Mac systems for transferring files from devices like digital cameras to your computer.
What kind of devices does the Mini-B connector fit?
The Mini-B connector is widely used for many digital camera models, cellphones, MP3 players, and PDAs requiring a Mini-USB connection.
What are the operating temperature limits for this cable?
This cable is rated for operation in temperatures ranging from -4°F (-20°C) to 176°F (80°C) in both non-condensing environments.
Is the CG27005 a TAA compliant cable?
No, the CG27005 is not listed as TAA compliant in its technical specifications.
