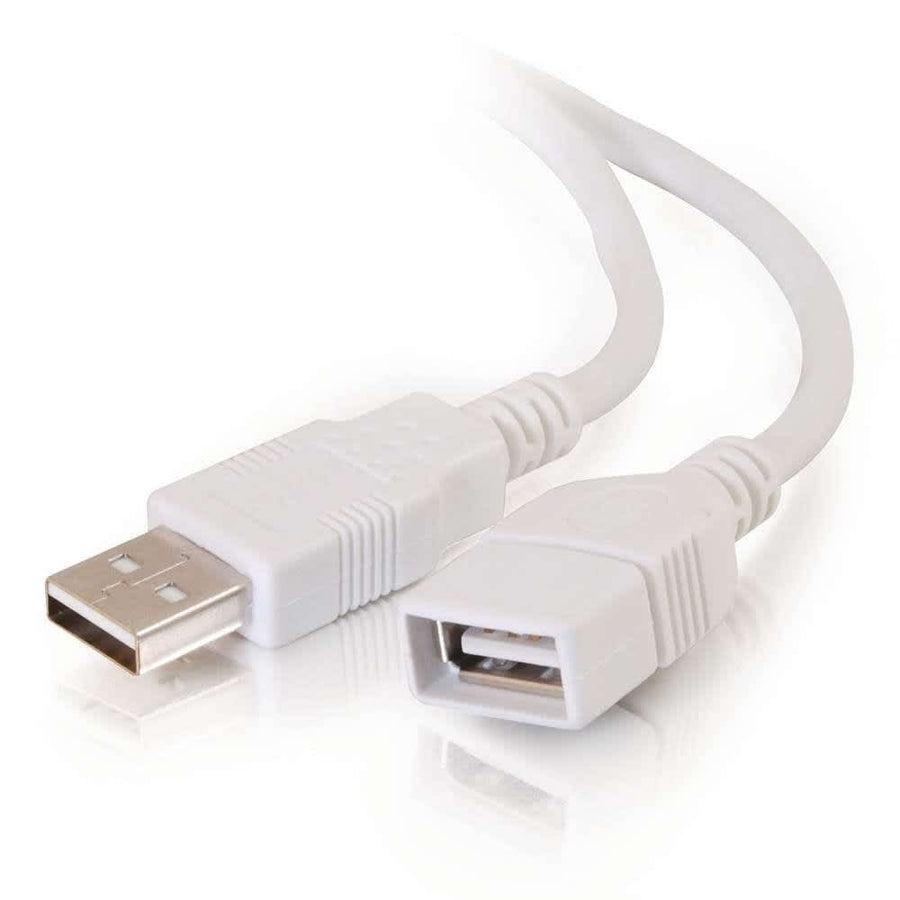

6.6ft (2m) USB 2.0 A Male to A Female Extension Cable - White
USB 2.0 A Male to A Female extension cable, 6.6 ft (2 m) length, white PVC jacket
The C2G CG19018 is a white USB 2.0 A Male to A Female extension cable designed to increase the reach of your existing USB A/B cables. This 6.6 ft (2 m) cable allows you to relocate USB devices to a more convenient position, facilitating easier access or better cable management. It features a 24 AWG wire gauge and a 0.19 in (4.7 mm) cable diameter with a 1.85 in (47 mm) bend radius. To ensure high-speed, error-free bidirectional signal transmission, the cable utilizes twisted pair construction and foil and braid shielding to mitigate EMI/RFI interference and crosstalk. This extension supports data transfer rates up to 480 MBPS and is compatible with both PC and Mac systems. For installations requiring longer distances or power for high-demand devices, note that the total extended single length should not exceed 5 meters; for those applications, the #39978 5m USB A Male to A Female Active Extension Cable is the required solution.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 100 mA |
| Bend Radius | 1.85 in (47 mm) |
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 6.6 ft (2 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.19 lbs (0.1 kg) |
All other specifications 19
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Type | ExtensionUSB |
| Color | White |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB-A Female(1) USB-A Female |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120190189 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the maximum total cable length allowed for the CG19018?
This cable is not for use when the total extended single length exceeds 5 meters. For distances longer than that, use the #39978 5m Active Extension Cable.
Will the CG19018 work for high-power USB devices?
For high-powered devices or longer runs, Legrand recommends using the #39978 5m USB A Male to A Female Active Extension Cable instead of this standard extension.
Is this cable compatible with Mac and PC systems?
Yes, this USB 2.0 extension cable is fully compatible with both PC and Mac platforms for bidirectional data transfer.
What are the environmental operating limits for this cable?
The cable is rated for operation in temperatures ranging from -4°F to 176°F (-20°C to 80°C) and can operate in non-condensing humidity from 20% to 80% RH.
Does this cable support high-speed data transfer?
Yes, it supports USB 2.0 technology with data transfer rates of up to 480 MBPS.
