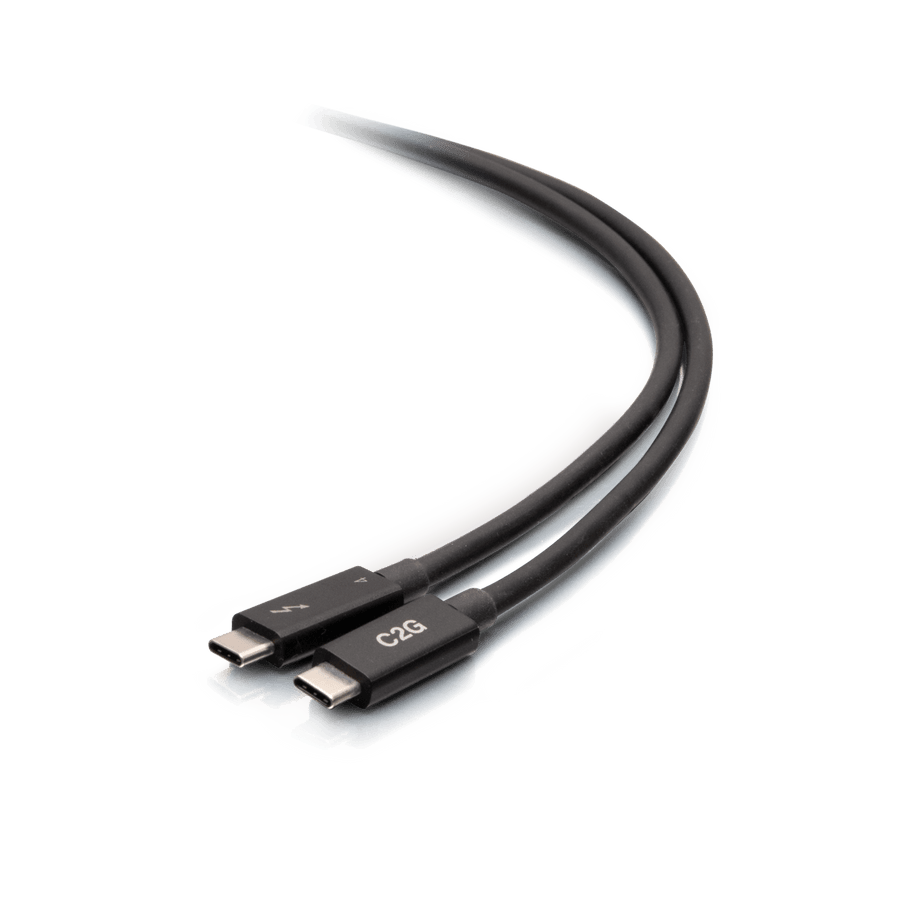

6.6ft (2m) Thunderbolt™ 4 USB-C® Active Cable (40Gbps)
6.6ft Thunderbolt 4 USB-C active cable supporting 40Gbps bidirectional data transfer and up to 8K @ 60Hz video resolution
The C2G28887 is a 6.6ft (2 m) Thunderbolt 4 USB-C active cable designed to provide high-speed connectivity for demanding professional environments. It supports bidirectional signal transmission at a 40Gbps data transfer rate, making it capable of moving a 5GB file in approximately one second. This active cable is engineered for high-resolution video workflows, supporting resolutions up to 8K @ 60Hz on a single display or 4K video on two displays via DisplayPort 2.1 and 'Alt' mode functionality. For power delivery, this cable supports up to 100W to charge laptops, tablets, or phones. The cable features a 0.19 in (4.8 mm) diameter and a 1.89 in (48 mm) bend radius. It is designed for use in environments ranging from -4° to 185°F (-20° to 85°C) and is compliant with NDAA 889, RoHS, REACH, TSCA, and Prop 65 standards. This USB-C cable is compatible with Mac, Windows, and Chrome OS devices.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.89 in (48 mm) |
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 6.56 ft (2 m) |
| Operating Temperature | -4° - 185°F (-20° - 85°C) |
| Shipping Weight | 0.25 lbs (0.1 kg) |
| Signal Transmission | Bidirectional |
| Storage Temperature Max | 104 Fahrenheit (40 Celsius) |
| Storage Temperature Min | 32 Fahrenheit (0 Celsius) |
All other specifications 13
| Cable Type | Thunderbolt 4 |
| Color | Black |
| Connector 1 | (1) USB-C Male |
| Connector 2 | (1) USB-C Male |
| Product Type | Active DeviceCable |
| TAA Compliant | No |
| UPC | 757120288879 |
| Video Input Support | USB-C |
| Video Output Support | USB-C |
| Video Resolution | 1080p4K4K @ 30Hz4K @ 60Hz8K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 40 GBPS |
| Warranty | 5 years |
Resources
Questions about this part
Will the C2G28887 work with my Thunderbolt 3 or Thunderbolt 5 devices?
Yes, this cable delivers up to 40Gbps to and from Thunderbolt 3, Thunderbolt 4, or Thunderbolt 5 enabled ports.
What video resolutions can I run through this USB-C cable?
The cable supports video resolutions of 1080p, 4K (including 4K @ 30Hz and 4K @ 60Hz), and 8K @ 60Hz.
Can this cable charge my laptop?
Yes, it supports up to 100W of power delivery to or from the connected device, including laptops and tablets.
What is the physical thickness and bend radius of the cable?
This cable has a 0.19 in (4.8 mm) diameter and a minimum bend radius of 1.89 in (48 mm).
Is there a datasheet available for submittals for the C2G28887?
You can refer to the C2G28885-7 Datasheet (PDF) for detailed technical documentation.
