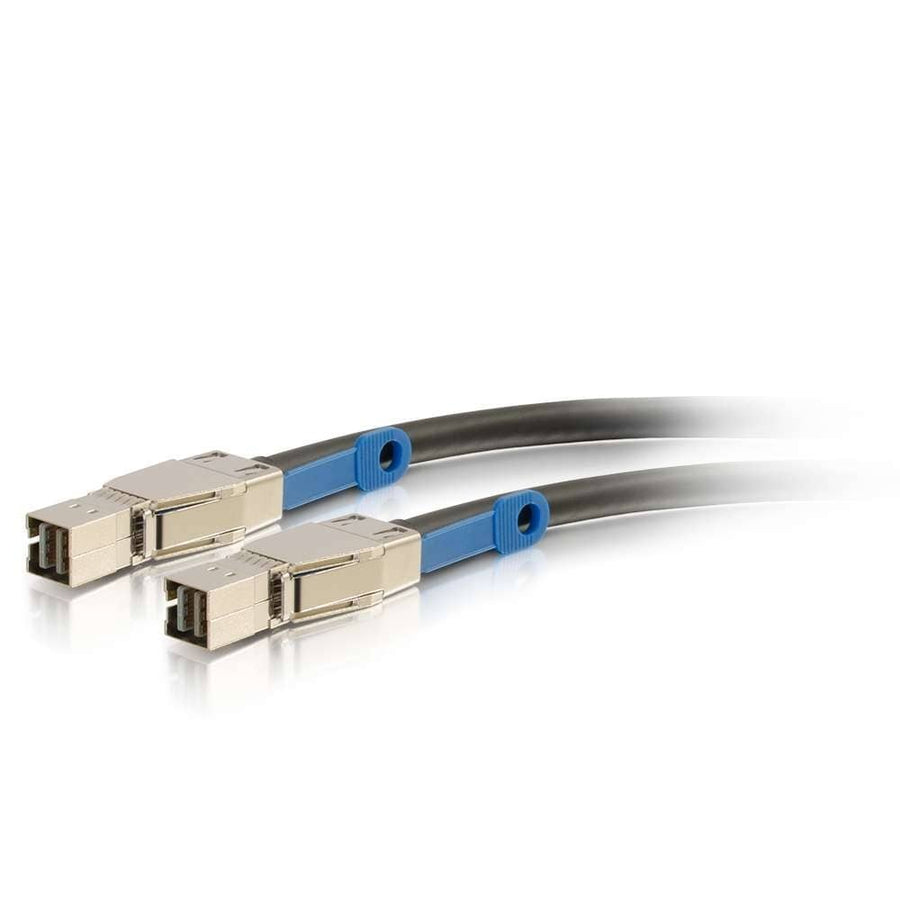

6.6ft (2m) Mini-SAS HD to Mini-SAS HD Cable
6.6 ft (2 m) Mini-SAS HD to Mini-SAS HD Direct Attach Cable supporting 12 Gbps data transfer speeds
The C2G CG54249 is a 6.6 ft (2 m) Mini-SAS HD to Mini-SAS HD Direct Attach Cable (DAC) designed for high-performance environments. It serves to connect storage area network (SAN) devices, hard drives, and other SAS interface devices such as workstations, servers, and desktops. Engineered with 24AWG silver plated solid copper conductors, this cable maintains full bandwidth over its 6.6 ft (2 m) length to support bit rates of 12 Gbps. It features a 100 ± 5 #@TDR differential impedance and is housed in a flexible PVC jacket with a 0.31 in (7.8 mm) diameter. This TAA compliant cable is constructed to meet the rigorous demands of next-generation high-speed networks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 3.54 in (90 mm) |
| Cable Diameter | 0.31 in (7.8 mm) |
| Cable Length | 6.6 ft (2 m) |
| Cable Type | Direct Attach Cable (DAC) |
| Color | Black |
| Connector 1 | (1) Mini SAS HD(1) Mini SAS HD |
| Connector 2 | (1) Mini SAS HD(1) Mini SAS HD |
| Jacket Rating | Standard / Non-Rated |
All other specifications 5
| Product Type | Cable |
| TAA Compliant | Yes |
| Certifications | CENDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | Flexible PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the maximum data transfer speed for the CG54249?
This Mini-SAS HD cable supports bit rates up to 12 Gbps for high-performance network and storage connectivity.
Is the C2G CG54249 TAA compliant?
Yes, this cable is TAA compliant and meets NDAA 889 requirements for government and enterprise use.
What type of construction is used in this DAC cable?
The cable is built with 24AWG silver plated solid copper conductors to ensure full bandwidth delivery.
What is the bend radius for this Mini-SAS HD cable?
The minimum bend radius for the CG54249 is 3.54 in (90 mm).
Does this cable come in other lengths?
This SKU is the 6.6 ft (2 m) version; a 1.6 ft version is also available in this series.
