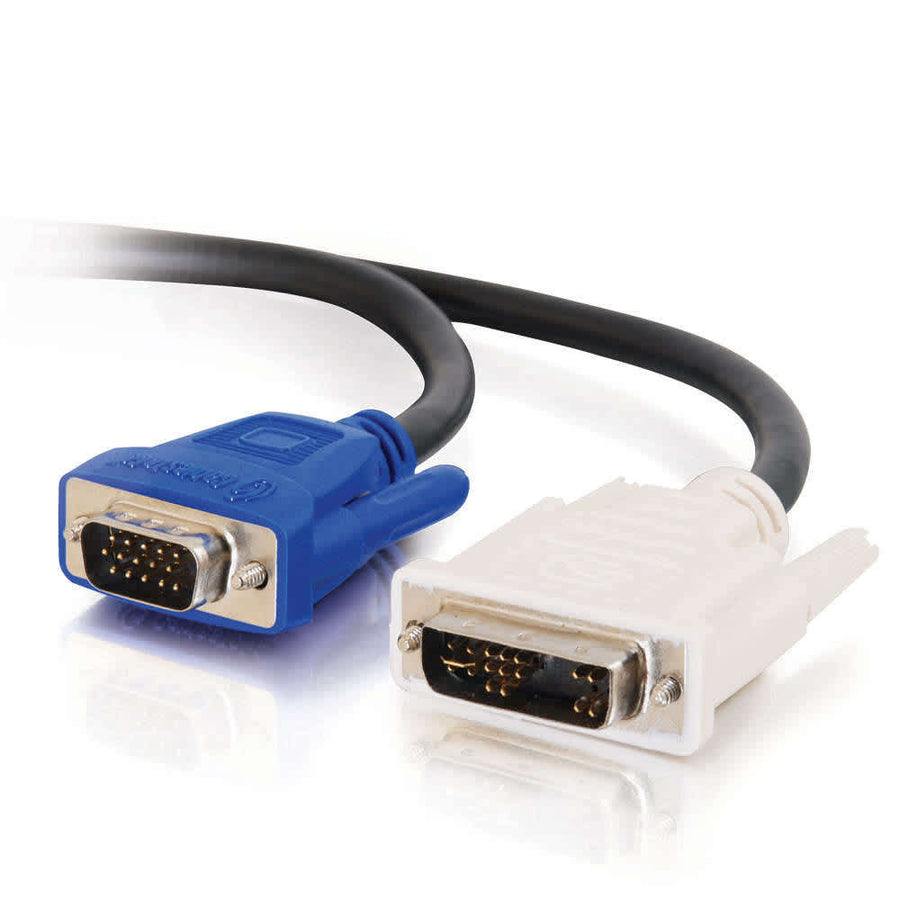

6.6ft (2m) DVI Male to HD15 VGA Male Video Cable
6.6ft DVI-A Male to VGA Male analogue video cable supporting resolutions up to 1600x1200
The C2G CG26954 is a 6.6ft (2m) video cable designed to connect VGA devices to analogue DVI displays. This cable features a DVI-A Male connector on one end and an HD15 VGA Male connector on the other. To ensure compatibility, the DVI connector on this cable can only be inserted into a DVI-I interface. It supports video resolutions up to UXGA (1600x1200) via three 30 AWG coaxial lines. The construction includes tri-shielded undermold and a braid shield to protect against EMI/RFI interference, alongside 28 AWG copper conductors insulated in hard-density polypropylene to minimize crosstalk. This cable is PC and Mac compatible and supports hot-plugging of DVI display devices. It is built with a PVC jacket and features gold-plated contacts to ensure conductivity and prevent data loss.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.28 in (7 mm) |
| Cable Length | 6.6 ft (2 m) |
| Shipping Weight | 0.53 lbs (0.2 kg) |
| Wire Gauge | 30 |
| Cable Shielding | Shielded |
| Cable Type | DVIVGA |
| Color | Black |
| Connector 1 | (1) DVI-A Male |
All other specifications 10
| Connector 2 | (1) VGA Male |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120269540 |
| Video Input Support | DVI-I |
| Video Output Support | VGA |
| Video Resolution | UXGA (1600x1200) |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will this DVI cable work with my DVI-D port?
No, the DVI connector on this CG26954 cable is only compatible with DVI-I interfaces.
What is the maximum resolution supported by the CG26954?
This cable supports video resolutions up to UXGA (1600x1200).
Is the CG26954 compatible with Mac and PC systems?
Yes, this cable is both PC and Mac compatible and supports hot-plugging of DVI display devices.
Does this cable include any specific compliance certifications?
The CG26954 is compliant with NDAA 889, RoHS, REACH, TSCA, and Prop 65.
What is the difference between this and the 9.8ft version?
The CG26954 is the 6.6ft (2m) version; a longer 9.8ft option is available in this series.
